Since the build plans have changed and I’m ditching the leaf springs for coilovers, I’m wide open as far as what front axle to run.

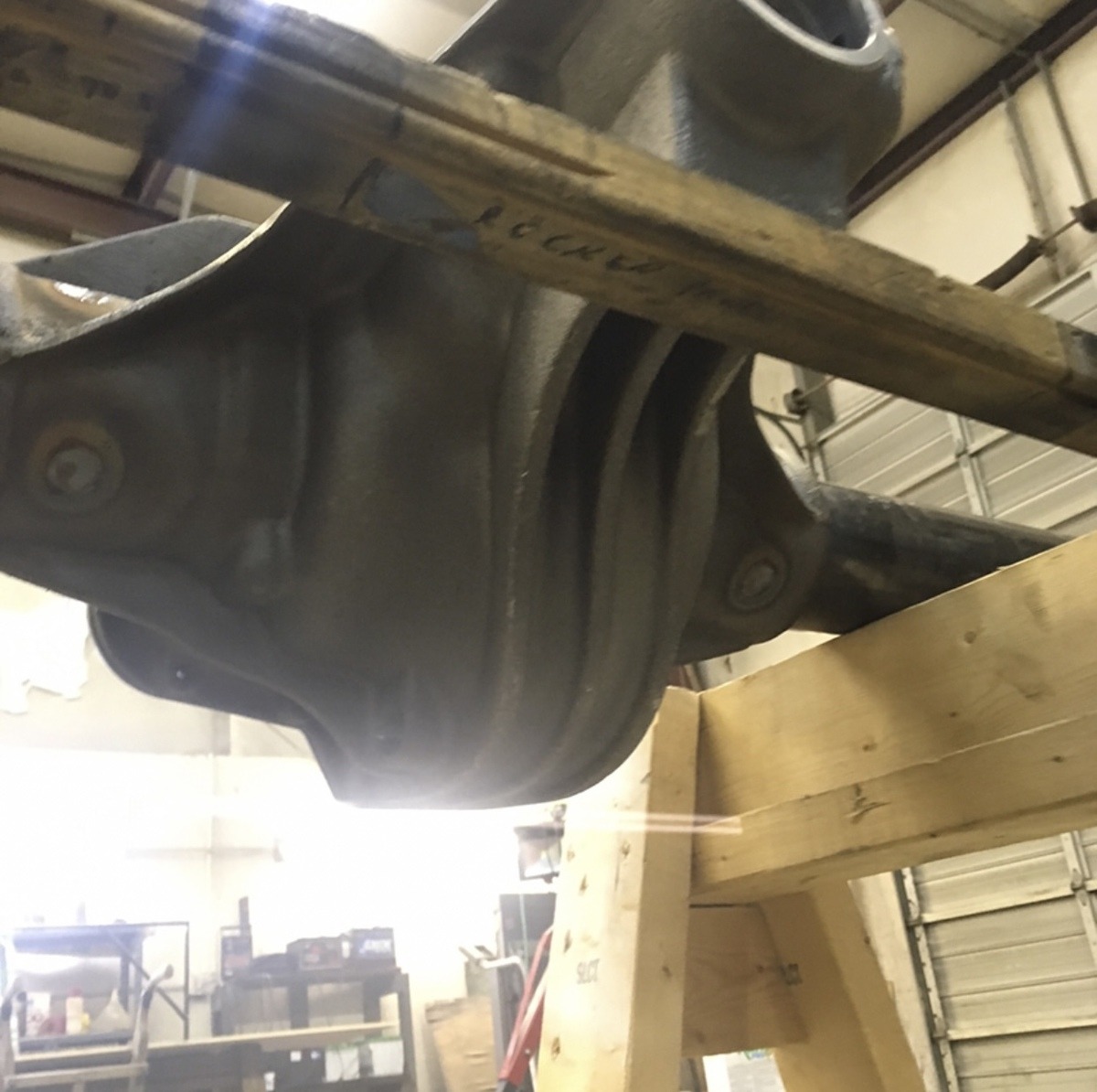

Originally, I was limited to a center section that had a cast in leaf pad for the front. My desire was the replicate the 78-79 Ford high pinion 60. But since ditching the leafs, I’ve been window shopping.

OP
Fouledplugs

Fouledplugs

YJ Addict
Supporting Member
Joined
Apr 15, 2020
Messages
325
Location
South Carolina
The only reason I have yet to pull the trigger on a front Spidertrax axle with their ultimate steering inner and outer knuckles is the bearing; it isnt sealed.

Being that I wheel down south, water and mud are precedent. I think I would rather have a sealed bearing, but haven't completely ruled out a full Spidertrax front axle build.

So my options have expanded to say the least.

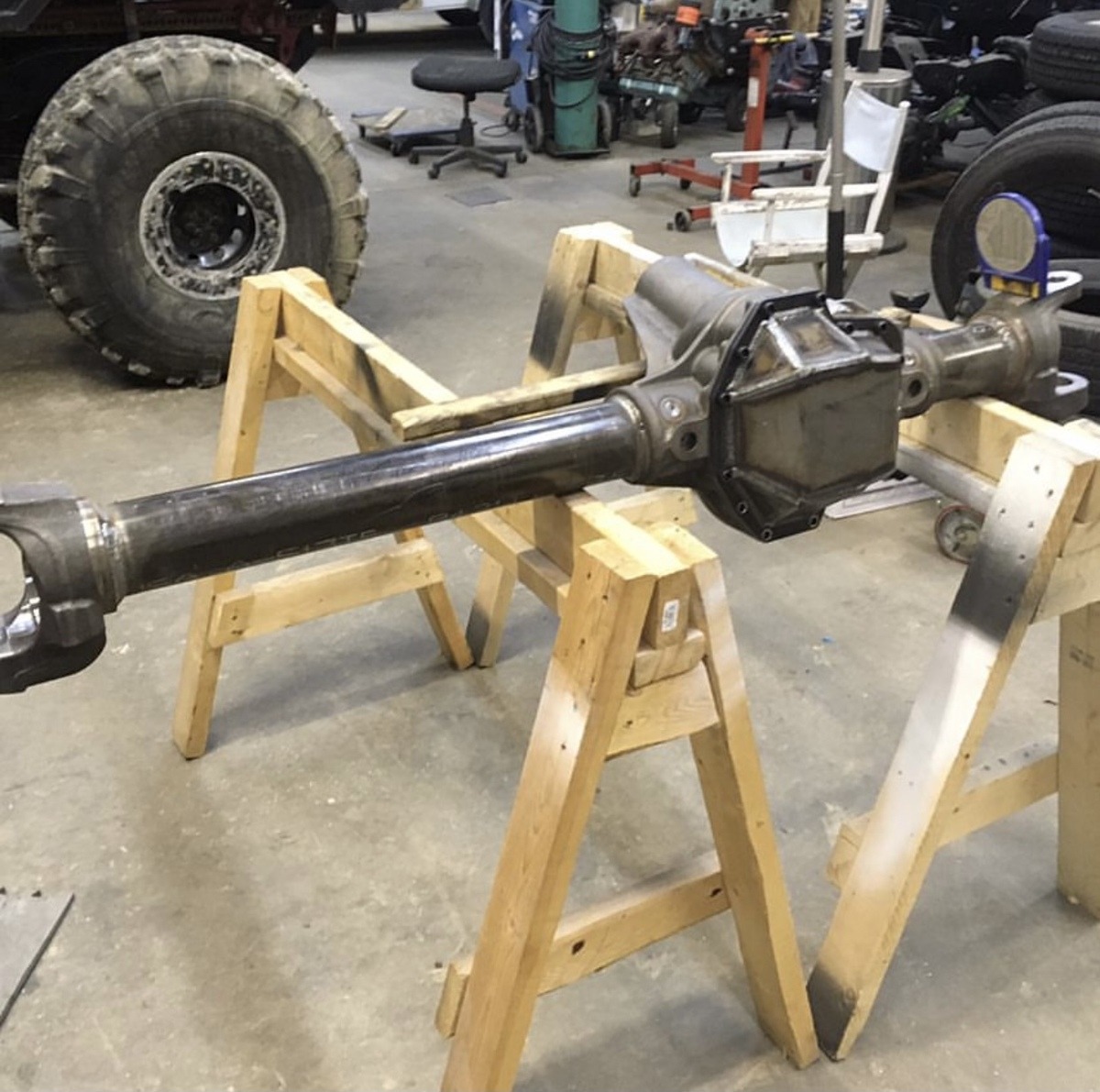

East Coast Gear Supply builds bare tube high pinion 60’s that use the Dana Ultimate 60 center section and I really like the genuine engineered Dana/Spicer stuff.


The Dana Ultimate 60 uses 3.5” tubes and utilizes a true 10” gear from the Dana Super 60 that they designed and engineered for the Ford Super Duty.

In 2018 Dana developed and prototyped a 1550 sized kingpin knuckle for their aftermarket 60’s. This year at Easter Jeep Safari 2021, Dana finally released their 1550 (SPL-70) kingpin knuckles for the Ultimate 60 to the masses. But it’s not my cup of tea. (Lacks shear steering option) I am glad to see another 1550 kingpin offering hit the market though.

So my options are:

  • Spidertrax 3.5” chromoly bare tube front axle housing with Reid’s Super Kingpin inners and outers. (Supports 40 spline outers that use a massive 2” axle shaft and 05+ Super Duty Unit Bearings.
  • Spidertrax 3.5” chromoly bare tube axle with Spidertrax Ultimate inner and outer knuckles with their chromoly gussets and skids.
  • ECGS Dana Ultimate 60 center section with 3.5” bare tubes and Reid Super Kingpin inner and outer knuckles.


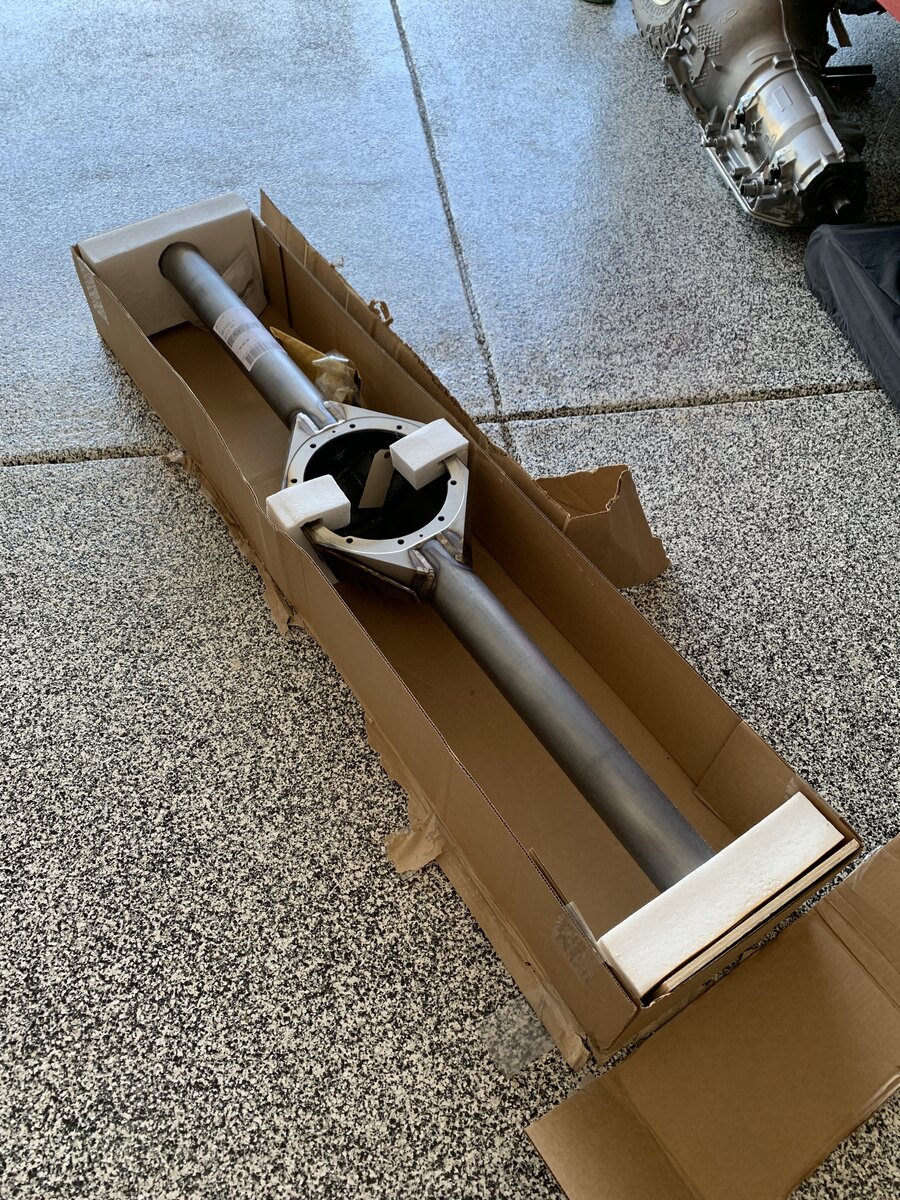

The Dana Ultimate 60 Center Section:







Last edited:
  • Like
Reactions: jeepjoe43

jeepjoe43

YJ Enthusiast
Lifetime Supporting Member
Joined
Dec 4, 2020
Messages
370
Location
Black Canyon City, AZ 85324
The only reason I have yet to pull the trigger on a front Spidertrax axle with their ultimate steering inner and outer knuckles is the bearing; it isnt sealed.

Being that I wheel down south, water and mud are precedent. I think I would rather have a sealed bearing, but haven't completely ruled out a full Spidertrax front axle build.

So my options have expanded to say the least.

East Coast Gear Supply builds bare tube high pinion 60’s that use the Dana Ultimate 60 center section and I really like the genuine engineered Dana/Spicer stuff.


The Dana Ultimate 60 uses 3.5” or 4” tubes and utilizes a true 10” gear from the Dana Super 60 that they designed and engineered for the Ford Super Duty.

In 2018 Dana developed and prototyped a 1550 sized kingpin knuckle for their aftermarket 60’s. This year at Easter Jeep Safari 2021, Dana finally released their 1550 (SPL-70) kingpin knuckles for the Ultimate 60 to the masses. But it’s not my cup of tea. (Lacks shear steering option) I am glad to see another 1550 kingpin offering hit the market though.

So my options are:

  • Spidertrax 3.5” chromoly bare tube front axle housing with Reid’s Super Kingpin inners and outers. (Supports 40 spline outers that use a massive 2” axle shaft and 05+ Super Duty Unit Bearings.
  • Spidertrax 3.5” chromoly bare tube axle with Spidertrax Ultimate inner and outer knuckles with their chromoly gussets and skids.
  • ECGS Dana Ultimate 60 center section with 4” bare tubes and Reid Super Kingpin inner and outer knuckles.

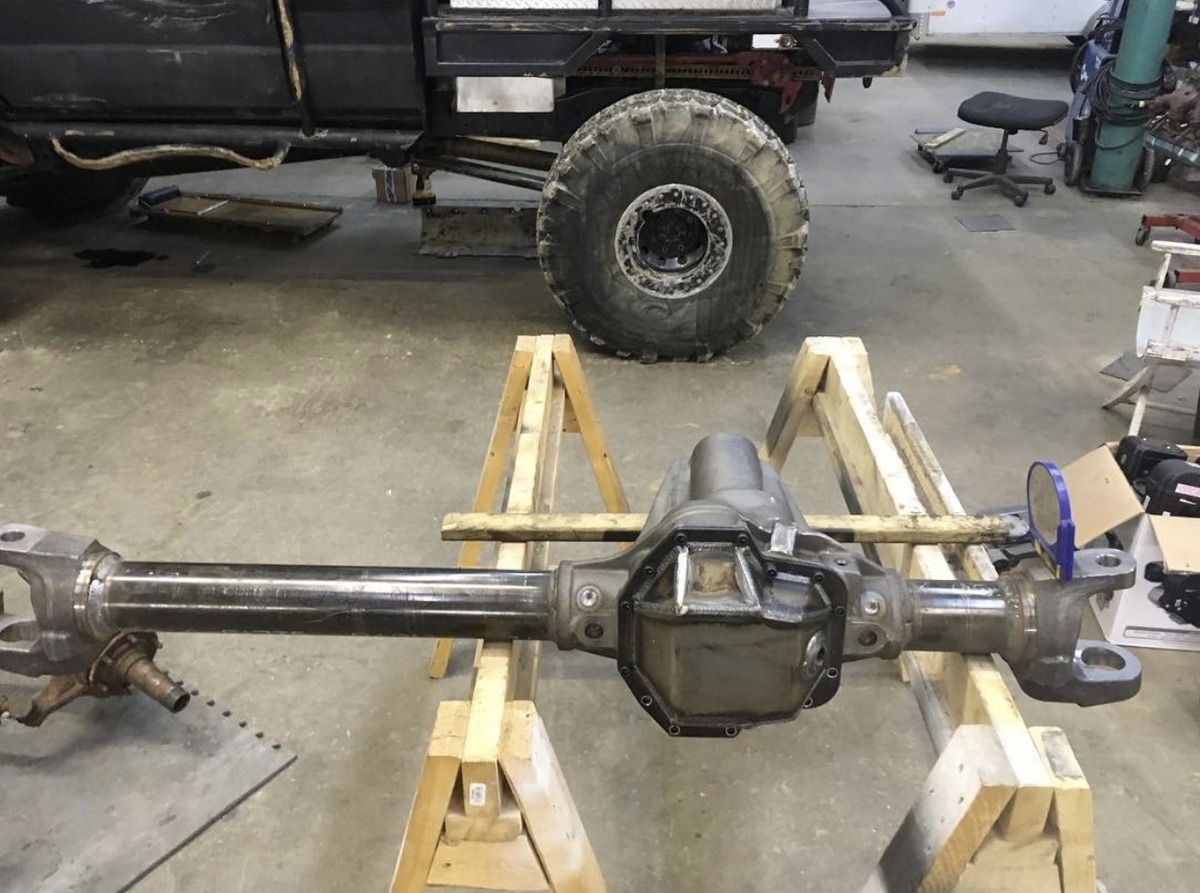

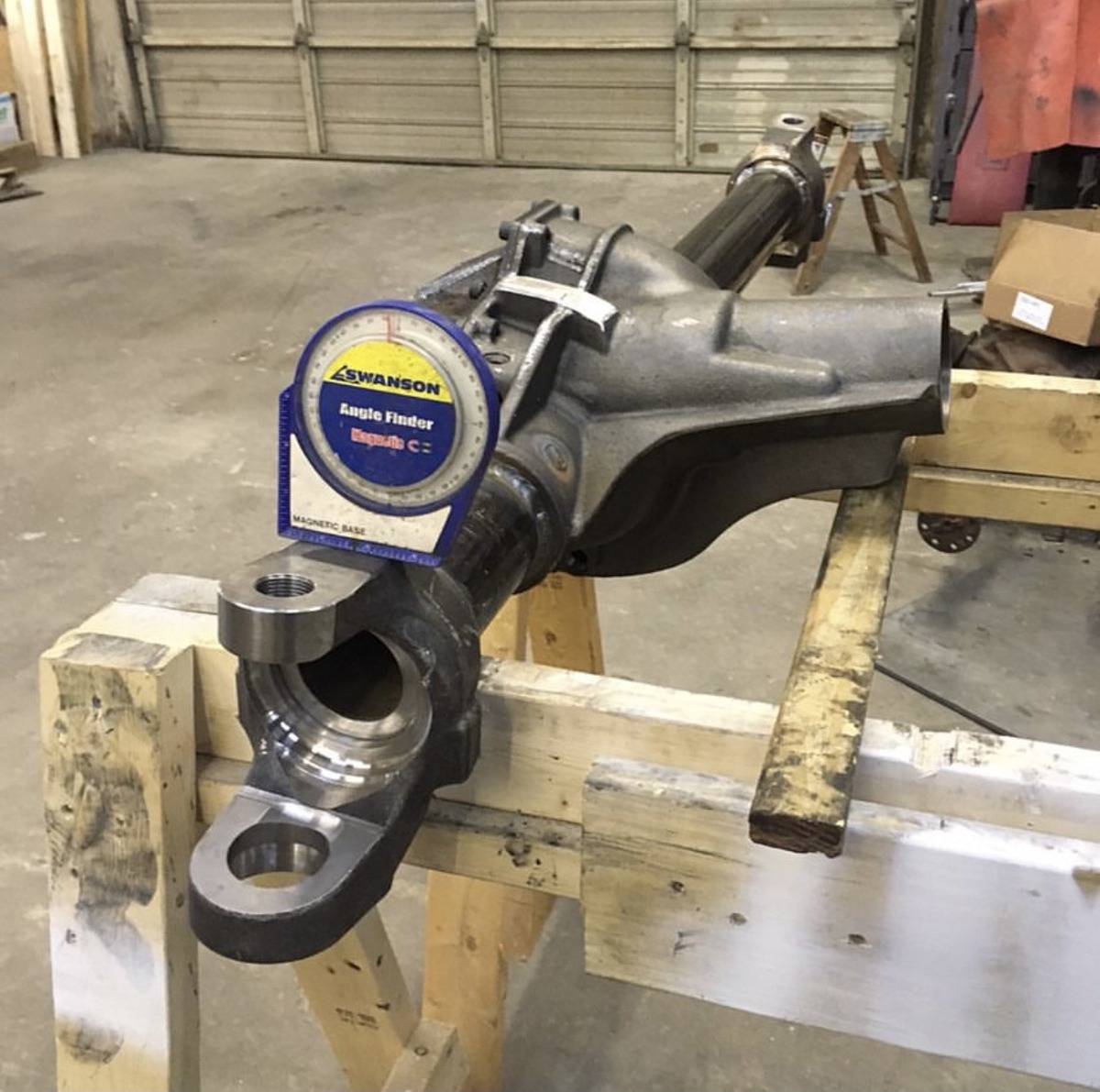

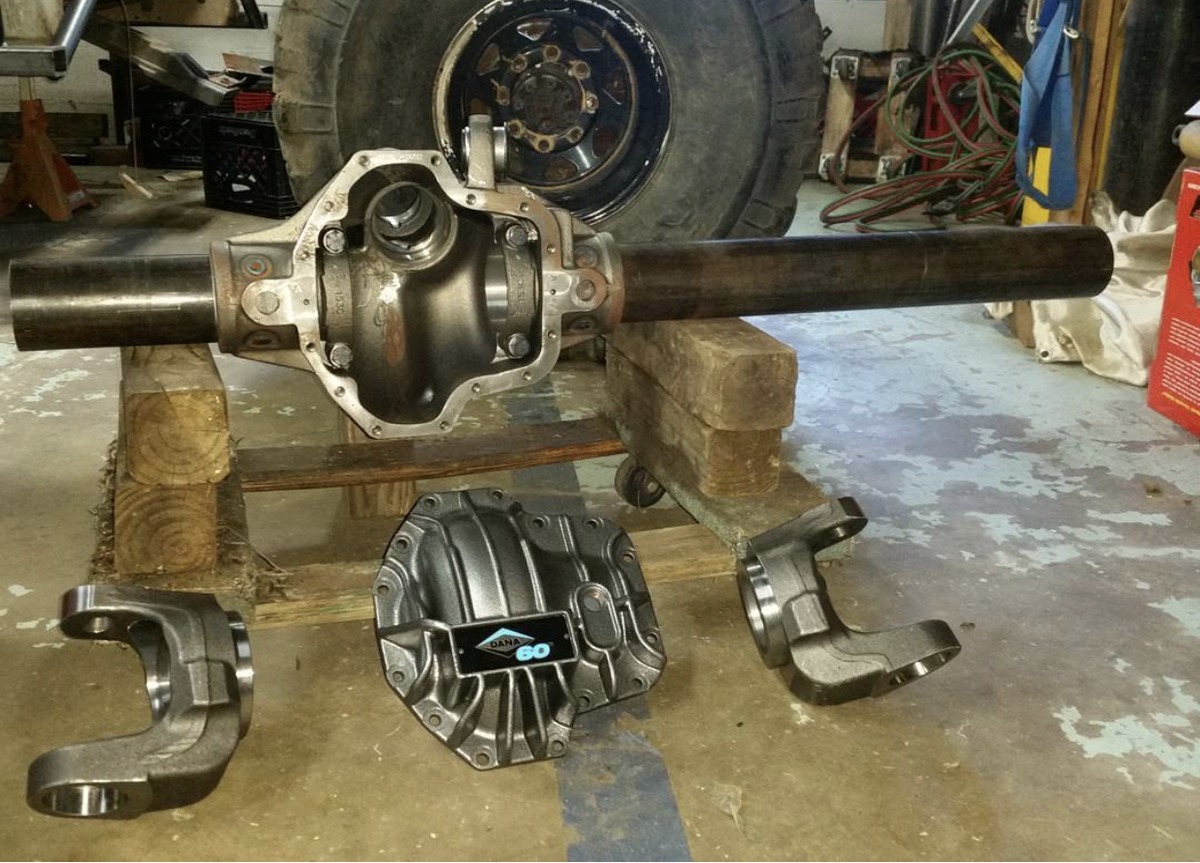

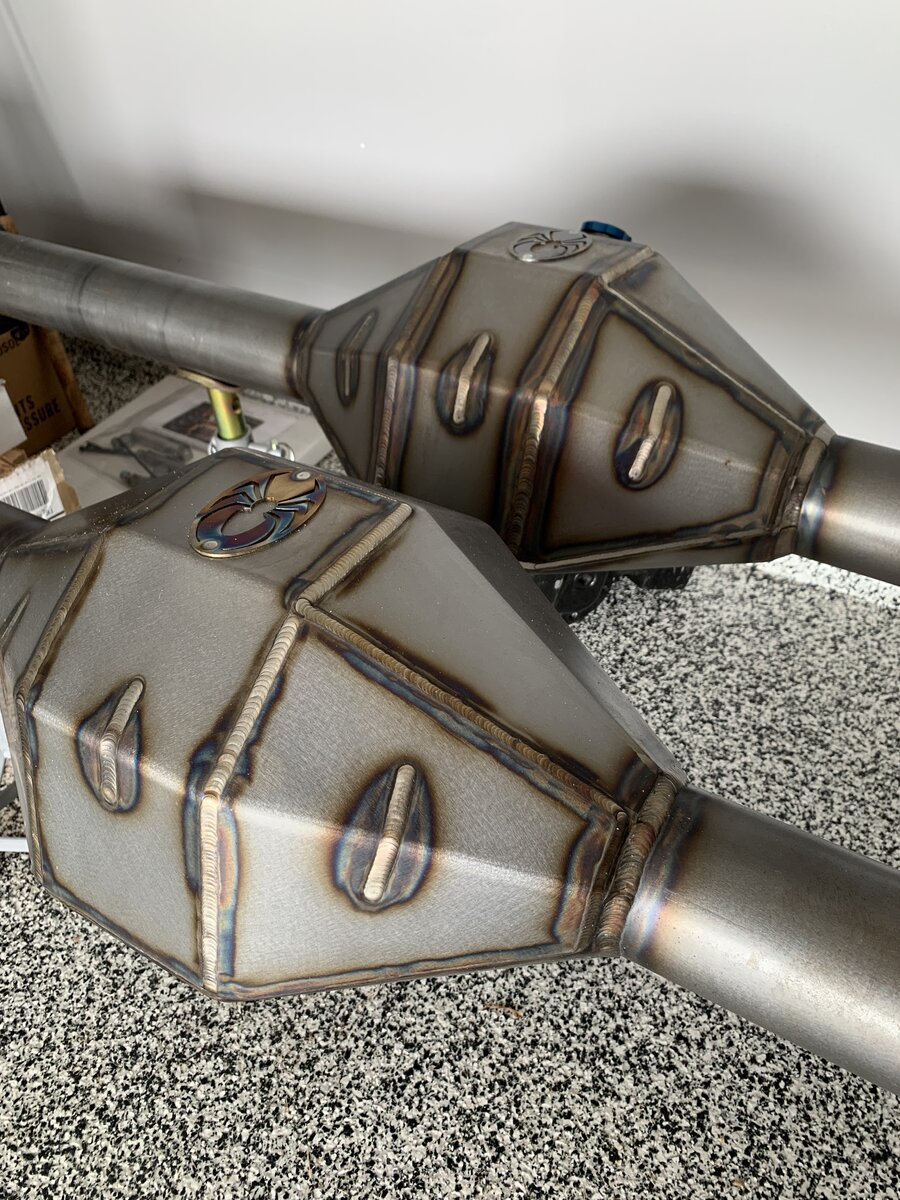

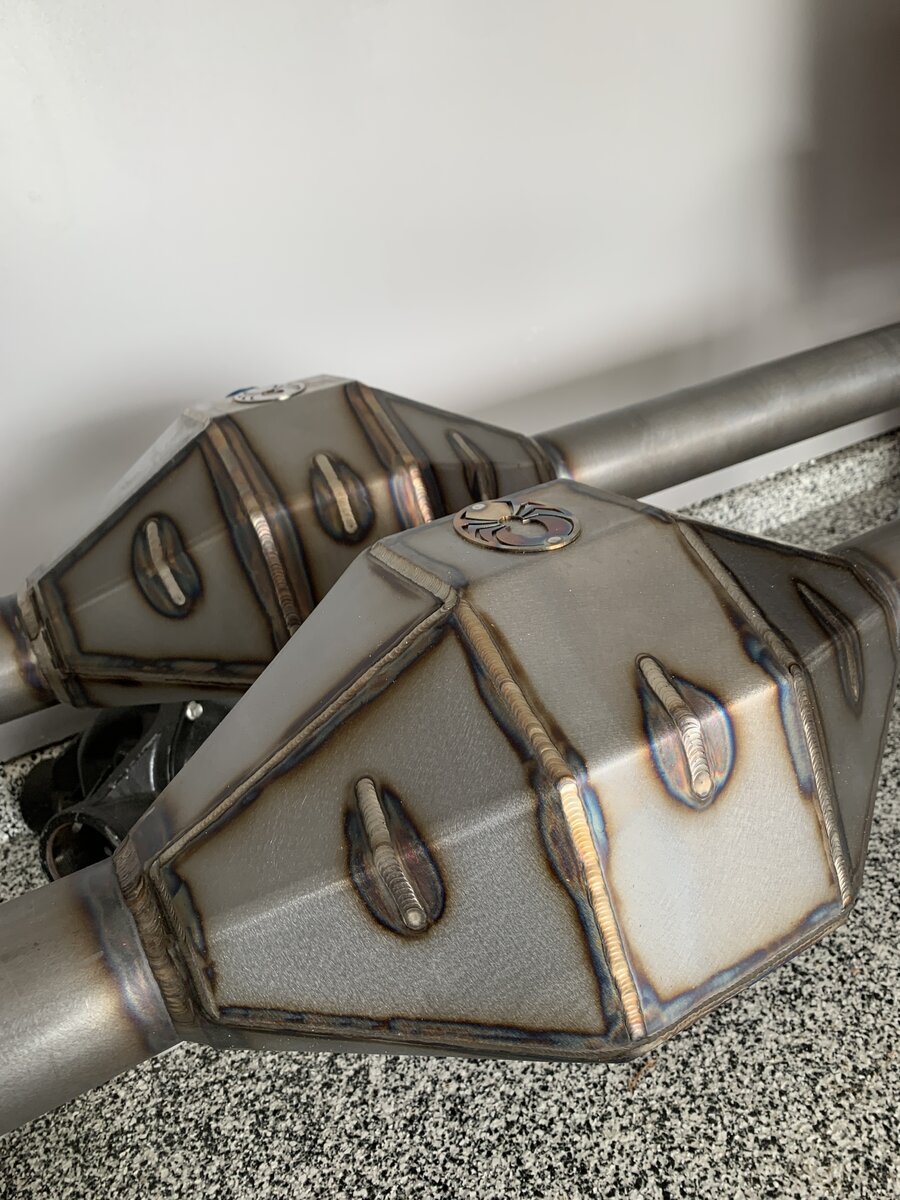

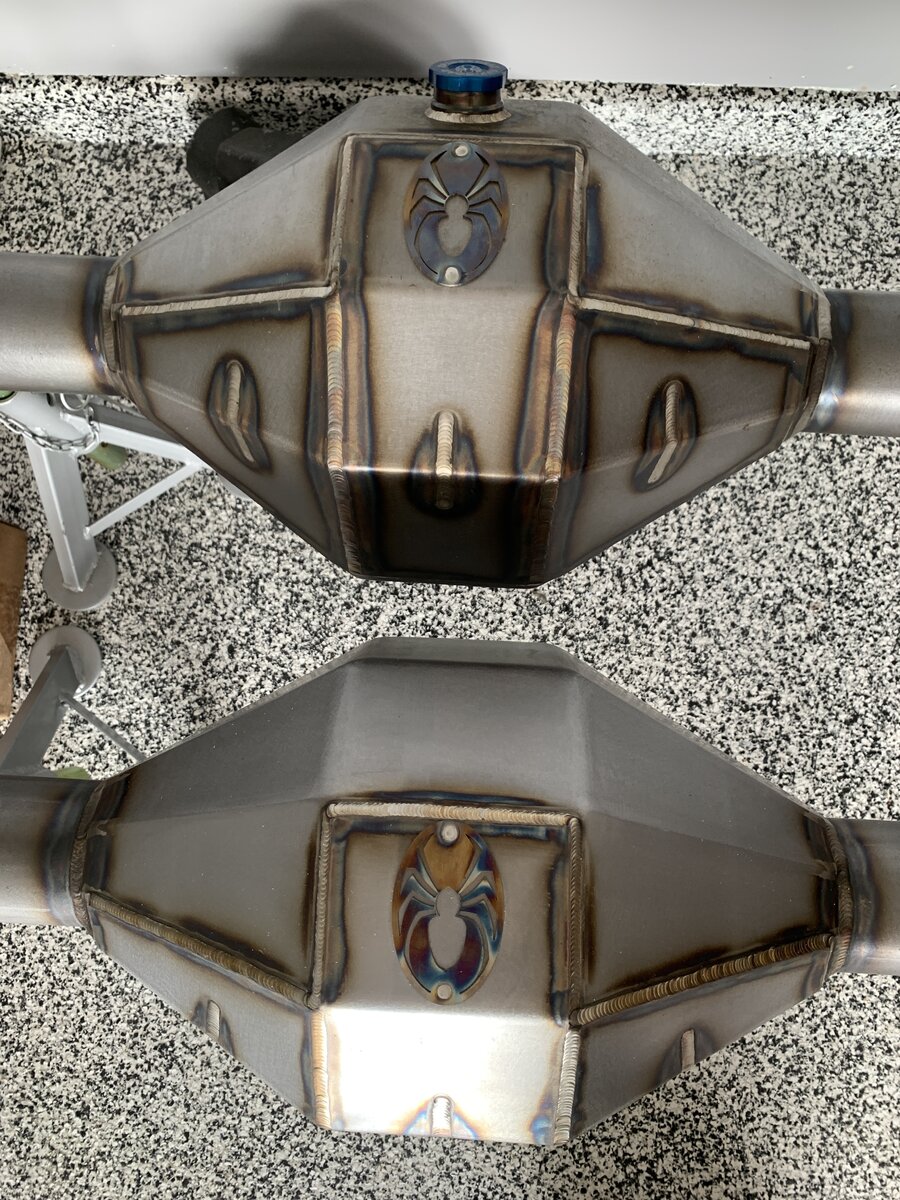

The Dana Ultimate 60 Center Section:
View attachment 117404
View attachment 117405
View attachment 117406
View attachment 117407
View attachment 117408

View attachment 117409
That's nice stuff...Color me jealous.
Even though I don't need one.

OP
Fouledplugs

Fouledplugs

YJ Addict
Supporting Member
Joined
Apr 15, 2020
Messages
325
Location
South Carolina
Atlas 4.3 ordered. Should take about 15 weeks....

PRP Comp Elite front seats ordered. Estimated shipping in 7 weeks...


I’ve got plenty to do in the mean time.

Last edited:
OP
Fouledplugs

Fouledplugs

YJ Addict
Supporting Member
Joined
Apr 15, 2020
Messages
325
Location
South Carolina

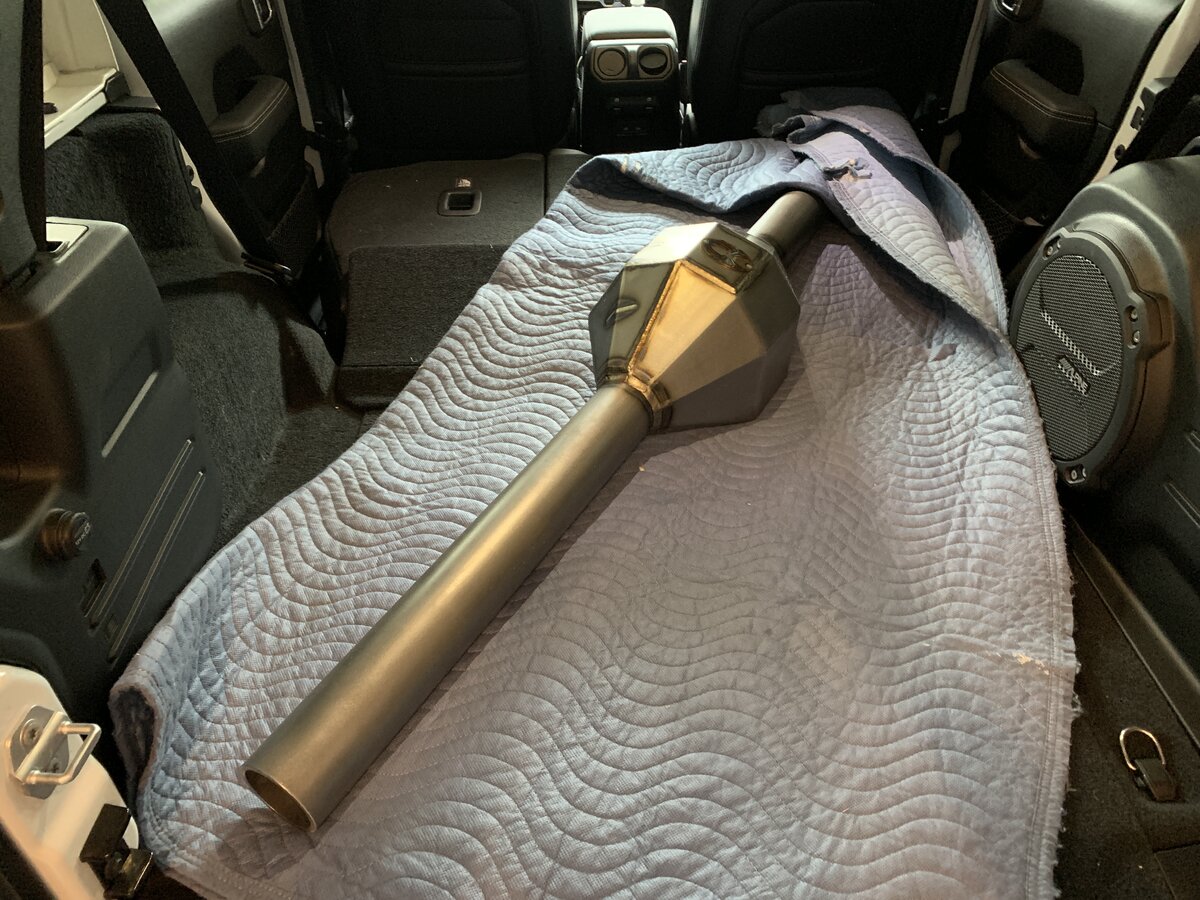

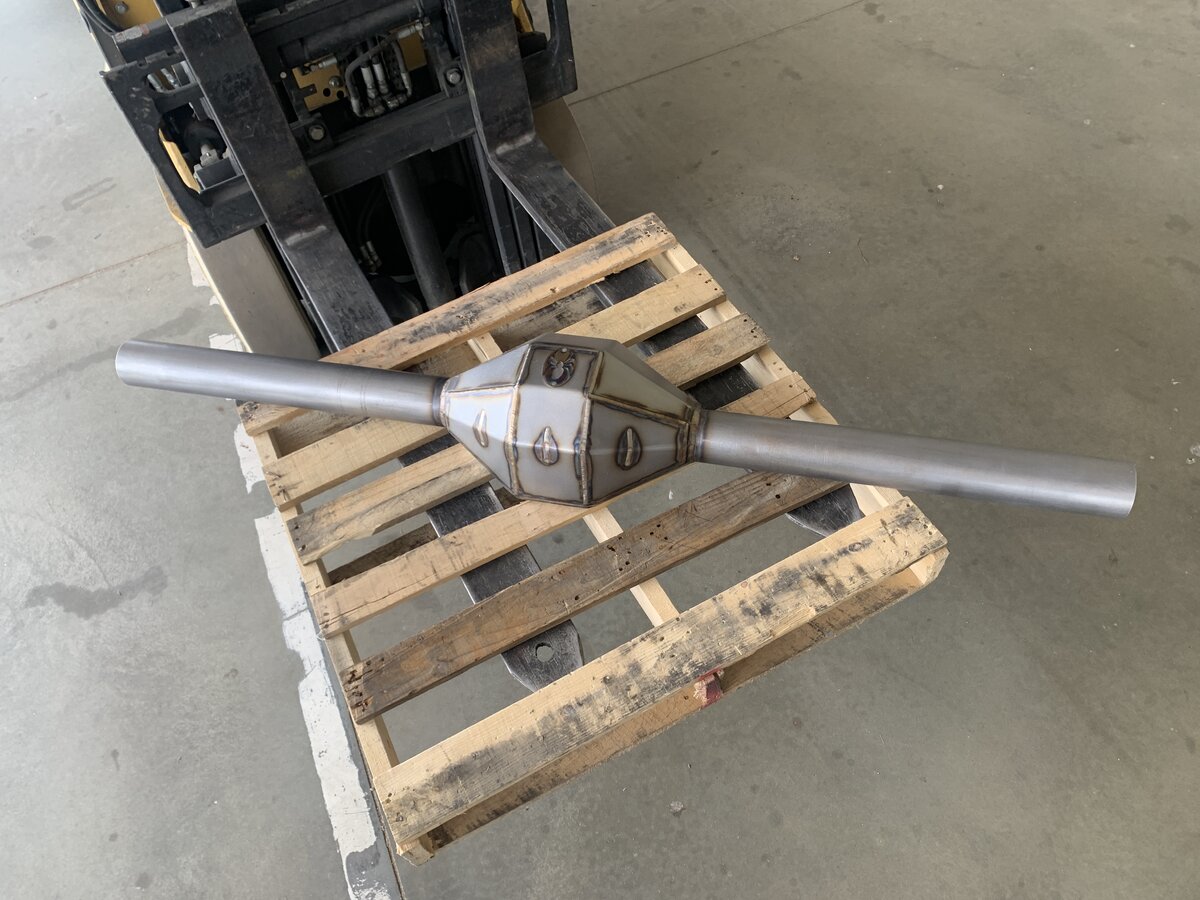

Front axle decision has been made to no surprise; going Spidertrax w/ kingpin knuckles.

Build plan is as follows:
  • Full-Width 69.5” WMS, Driver Drop, Long Driver Side Tube
  • 3.5” Spidertrax Pro Series Housing (Heat-Treated Chromoly Tubes)

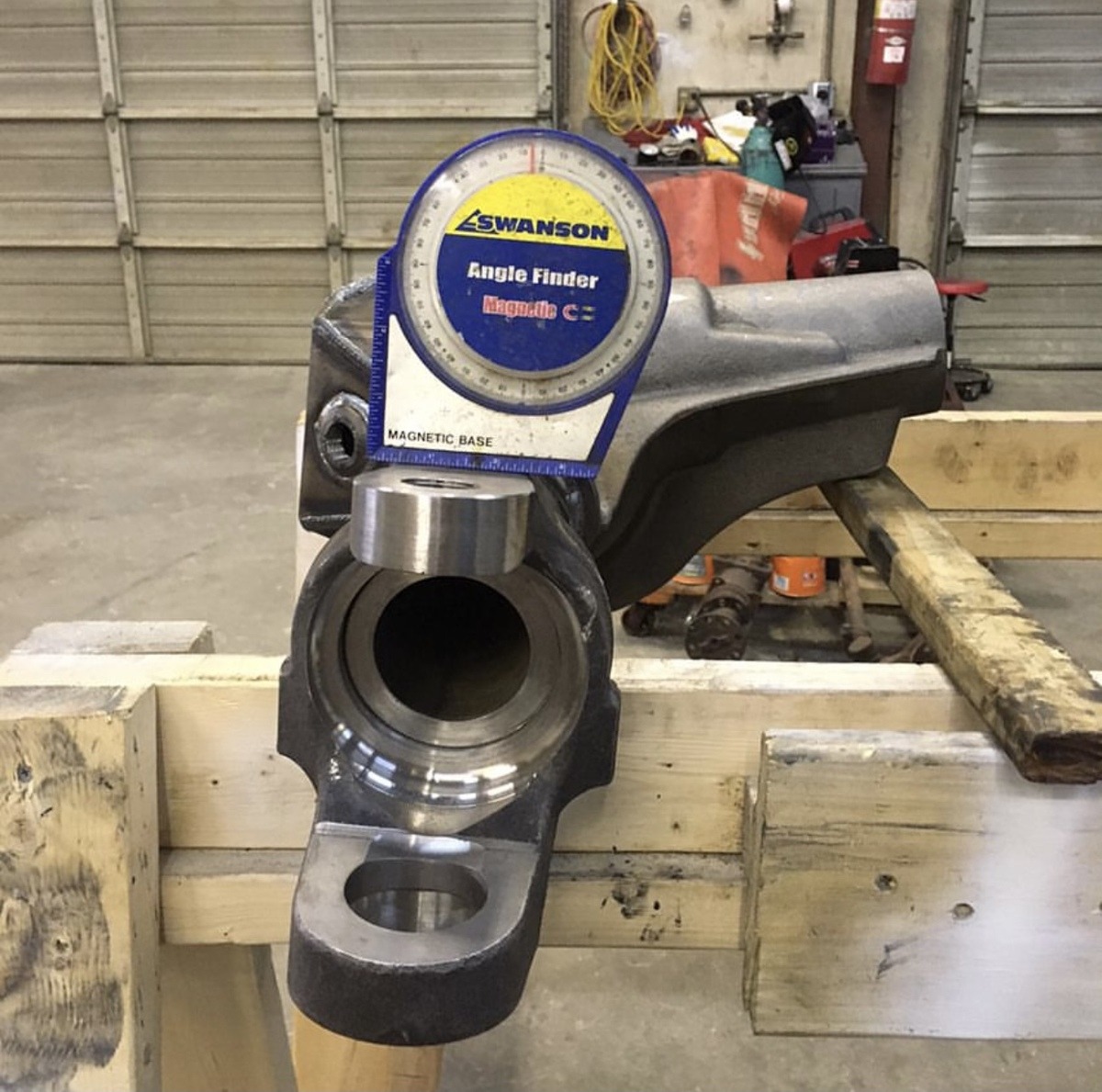

  • Reid Super Kingpin Inner Knuckles (C’s)
  • Reid Super Kingpin Steering Knuckles
  • High Steer Arms Drilled for Double-Shear
  • Ford Superduty 05+ Timken Unit Bearings, Re-drilled 8x6.5
  • Ford SuperDuty OEM Brake Calipers
  • Ford Superduty OEM Rotors Re-Drilled 8x6.5
Waiting on Spidertrax to get back to me, I only asked that they tig weld a set of 4130 skid plates on the housing before shipping it out to me.

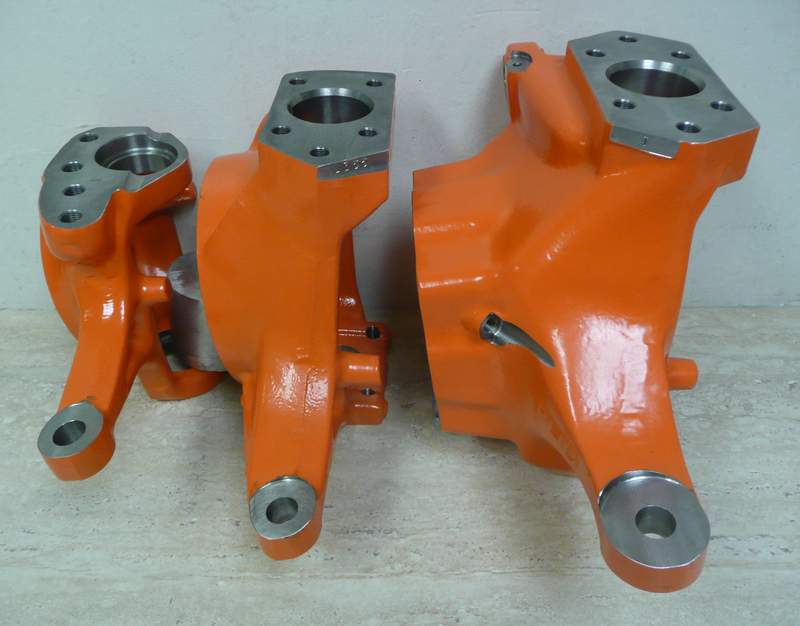

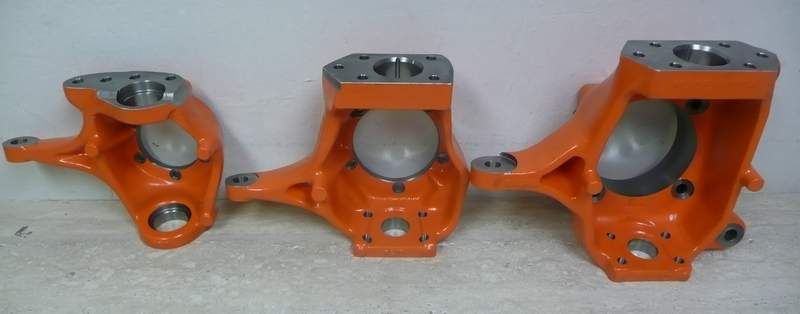

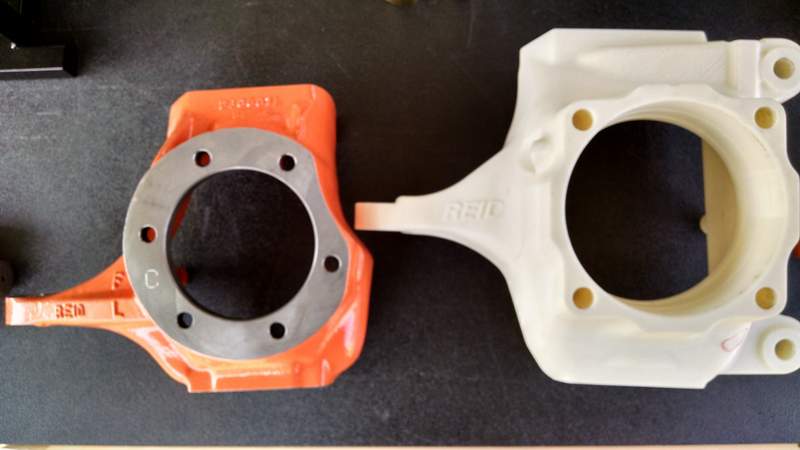

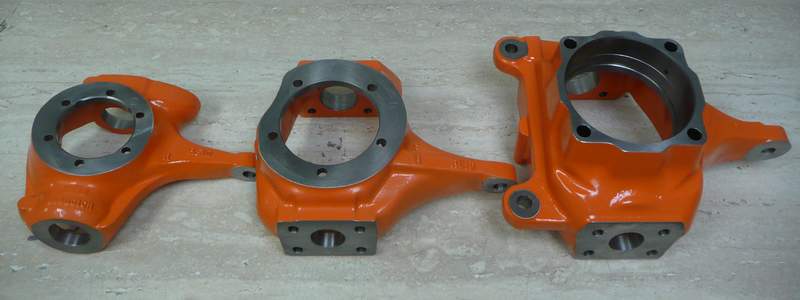

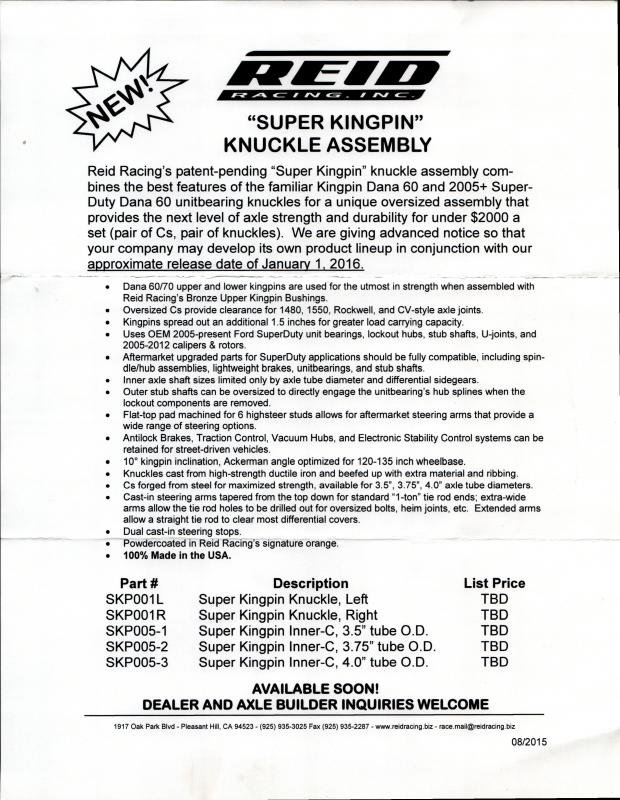

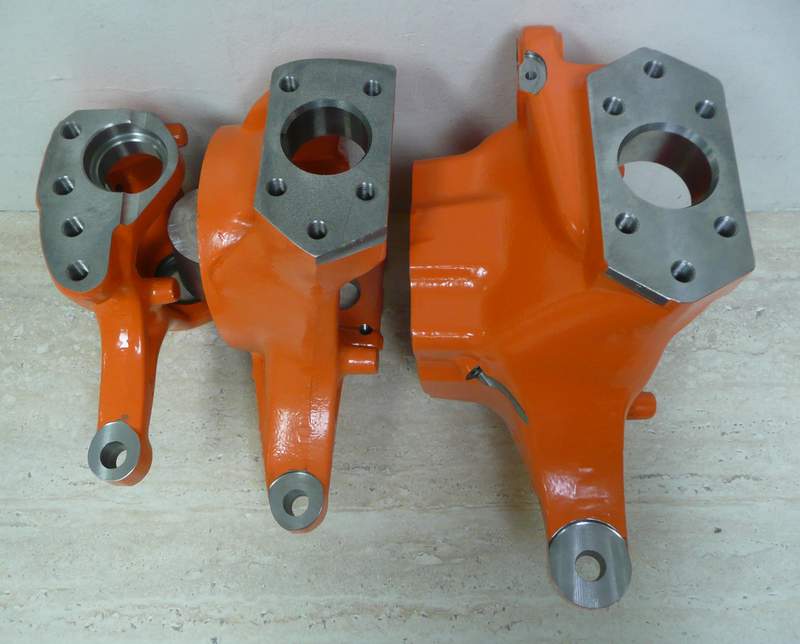

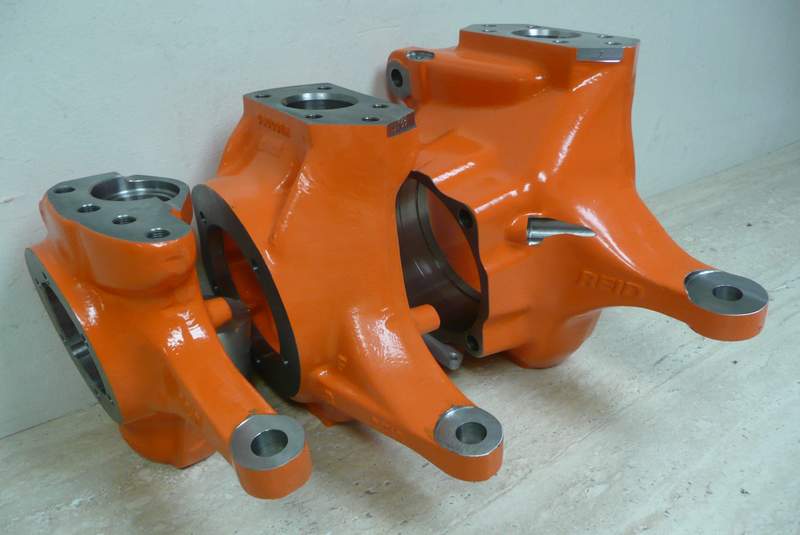

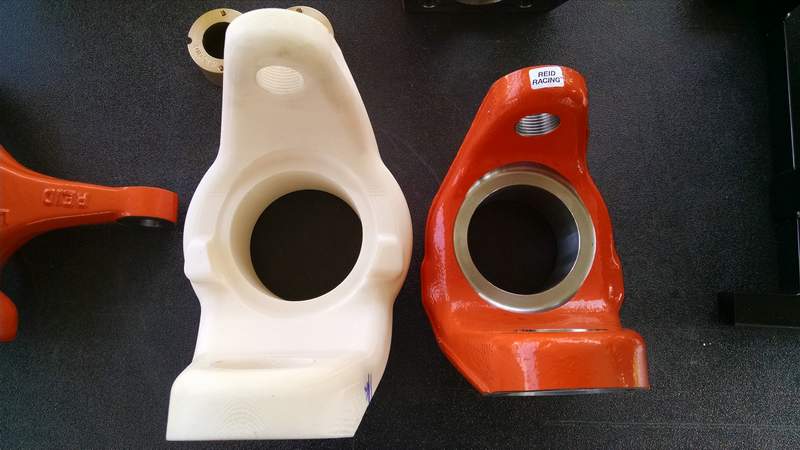

Reid Steering Knuckle Comparisons:
