LED dash lights


Flyer58

YJ Enthusiast
Joined
Apr 12, 2020
Messages
481
Location
Magnolia, Texas
I'm finding the warning lights are 74, T5 bulbs and the gauge lights are 194, T10

Has anyone installed these? I'm reading some flicker. Any recommendations?
Thx.

OP
Flyer58

Flyer58

YJ Enthusiast
Joined
Apr 12, 2020
Messages
481
Location
Magnolia, Texas
I put leds in mine, and love them. It's a good time to clean all the contacts and dielectric grease the connectors as well. My gauges give me no problems.

Sounds good. I ordered some of the small ones for the warning lights which I hope help. I've been driving like an old man on the road for miles with my blinker on. :)

Lots of dirt and a mud wasp next or two got cleaned out while taking those panels off.

My gauges are good but the gas gauge indication is intermittent. I tested the gauge and it's ok so it might be the sending unit in the tank. I had trouble getting a meter reading on that end of the plug back there.

Thanks

OP
Flyer58

Flyer58

YJ Enthusiast
Joined
Apr 12, 2020
Messages
481
Location
Magnolia, Texas

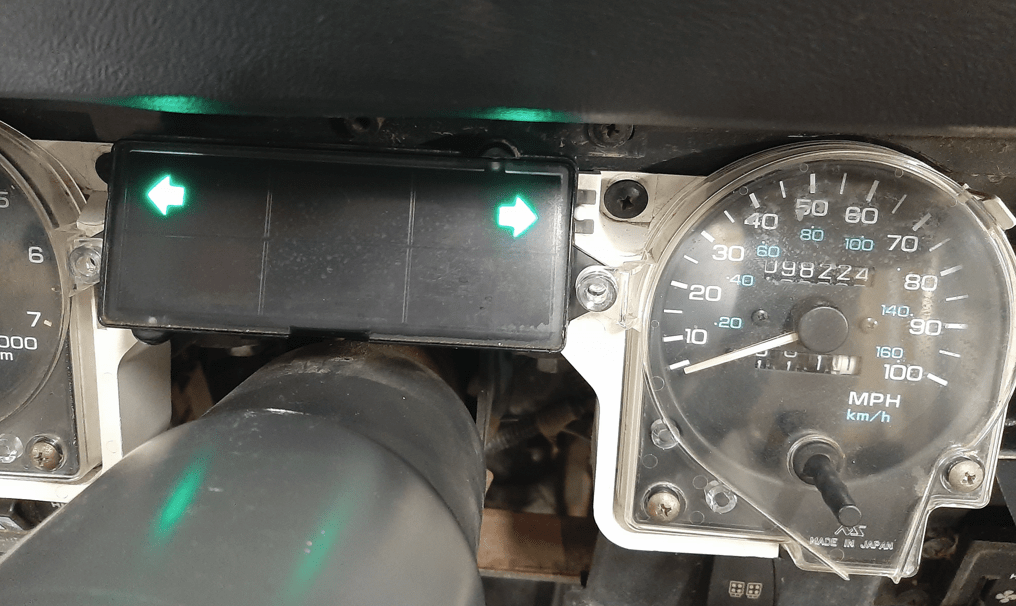

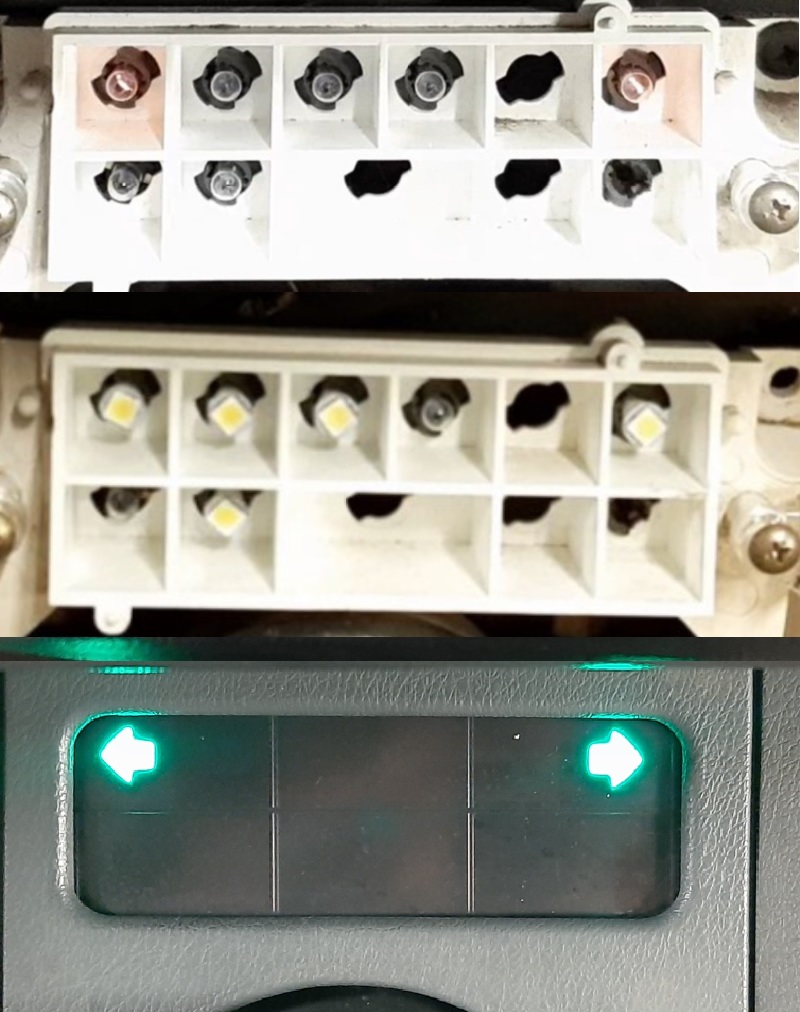

Oh yeah, much better. $6 for qty. of 10 through Amazon and they arrived the next morning at 9:30am. Now you won't see me driving down the road like an old man with my blinker flashing. These are now easily daylight readable over the original incandescent.

I didn't change the seatbelt and "Up arrow" time to shift lights so they'll stay dim.

LED Lights.jpg

  • Like
Reactions: Fouledplugs
OP
Flyer58

Flyer58

YJ Enthusiast
Joined
Apr 12, 2020
Messages
481
Location
Magnolia, Texas

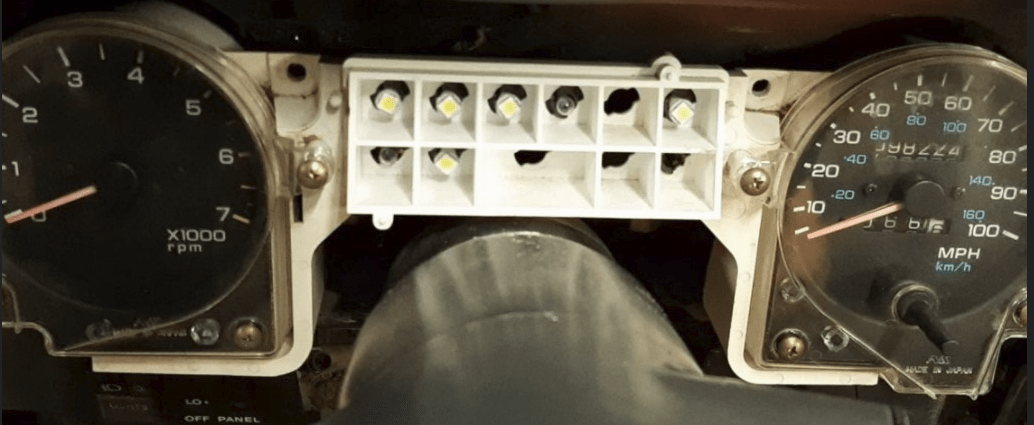

I changed only 5 of the warning lights because I didn't care about the seatbelt or the little arrow telling me when to shift. The arrow is wrong anyhow when using bigger tires. The gauge cluster uses a different size bulb and I was going to wait to see how I liked the warning light before going ahead with the gauge lights. I think it's only one light for each gauge.

Mine is a 1992 YJ so a 94 may have different options with more lights .


machoheadgames

Certified YJ Researcher
Supporting Member
Joined
May 19, 2020
Messages
950
Location
Dallas, TX
92-95 will have 4 194 bulbs (2 per gauge) in the tach/speedo cluster and 2 bulbs in the 5-gauge cluster (1 bulb between the 2nd and 3rd gauges and another bulb between 4 & 5 - 4wd has its own bulb so nothing needed there - you can put an LED there if desired too).

Personally, I’d skip the whole LED gauge light endeavor. Most of them don’t dim. Maybe it’s just me and my sensitive eyes (or that I’m really picky) but not being able to dim them makes it a no-go for me. LEDs are typically pretty bright too so for me it’s just way too uncomfortable. I can’t even fathom the outcomes of those who choose super bright blue. That is really hard on eyes. I dunno, just my stance on it. Personally I find that the stock bulbs produce a very calming color tone with more than adequate brightness - so I’m good with stock.

On the flip side - I 100% recommend LEDs in the idiot lights. The stock bulbs there are way too dim, especially the turn signals when the top is off and sun is out. can’t see them at all. I run colored ones behind each lens which produces an incredibly nice looking color tone and brightness on each. I need to put a small ohm value resistor on the CEL so it will quit staying dimly lit when the key is on.

I do recommend an LED in the heater panel too. Stock bulbs melt the panel. I chose a bright LED and then dimmed it with a resistor. It still got hot at full brightness but with the resistor it stays ice cold so it will be perfect for my heater control.


BuckeyeJeep

New Member
Joined
Nov 19, 2021
Messages
12
Location
Lancaster, Ohio
Thanks, macho. Maybe im the idiot, but what exactly do you mean by idiot lights lol ? location and how many?
And is the heater panel the same size as the others? Thanks


machoheadgames

Certified YJ Researcher
Supporting Member
Joined
May 19, 2020
Messages
950
Location
Dallas, TX
Thanks, macho. Maybe im the idiot, but what exactly do you mean by idiot lights lol ? location and how many?
And is the heater panel the same size as the others? Thanks

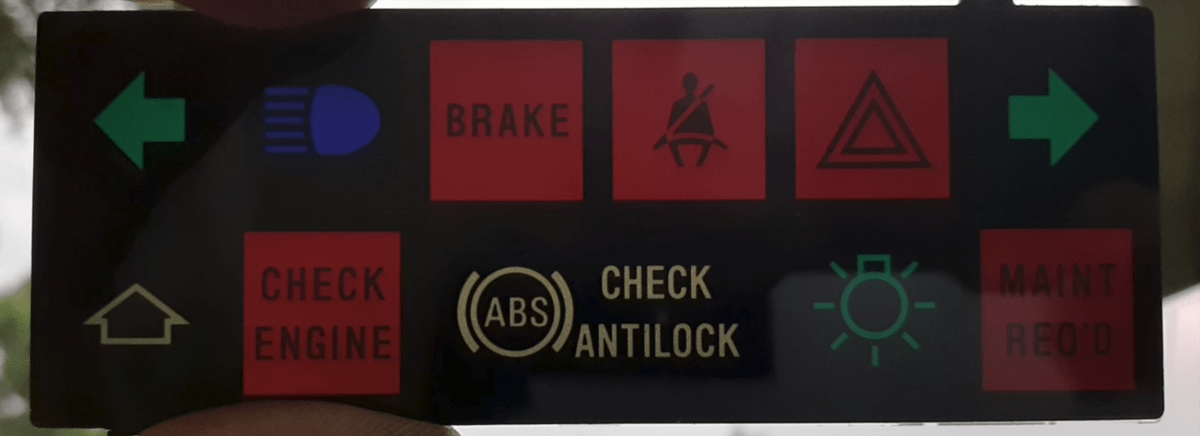

Hah, the idiot lights are the ones above the column. Turn signals, high beam, check engine, park brake and seat belt. Those are #74. I deleted the seat belt buzzer and light, so I needed two reds (parking brake & CEL), one blue (high beam), and two greens (turn signals). For some weird reason the PCM outputs a small amount of voltage on the check engine circuit when the the key is on. It’s not enough for a bulb to light up but an LED will light up dimly so a small ohm rating resistor can be used to waste that energy to keep the led off.

The gauges and heater control all use 194s which is the same as a 168 except 194 is less wattage as a bulb. In the LED world 194/168 are effectively identical.

They’re expensive but I buy all my LED bulbs from VLEDS. Have not had one failure, great color & brightness, overall no regrets with them.
