NP231 Rebuild Kit


Justin Schuring

New Member
Joined
Feb 4, 2021
Messages
19
Location
Utah
Hey guys/gals I’m getting ready to rebuild my t-case. It’s a 91 2 NP231 in my 92 YJ Sahara. What kits would you recommend? I already have an sye kit that I’m installing upon rebuild. Any input will be appreciated. Thanks.


jeepjoe43

YJ Enthusiast
Joined
Dec 4, 2020
Messages
242
Location
Black Canyon City, AZ 85324
Another of our members pointed out that the sector shaft (the part the shifter is connected to) does not have a true Neutral.
When the T-case is in Neutral, it's actually in 4WD (the front shaft will turn), It's just not connected to the transmission.
But one from TJ does have a true Neutral, try to find that too. There is a link on this forum somewhere.
Really only an issue if you're flat towing it. But since you're there...
Wish I had known about it when I did my SYE.
As far as a rebuild kit is concerned the only suggestion I can make is get it from a reputable supplier. (Made in USA)
Check some of the gear supply sites. (Currie, ECGS, Dynatrac, etc.)
Probably cost more, but if you're like me, you only want to do this once.
I didn't rebuild mine when I did the SYE, probably should have, but I had time pressure.

OP
Justin Schuring

Justin Schuring

New Member
Joined
Feb 4, 2021
Messages
19
Location
Utah

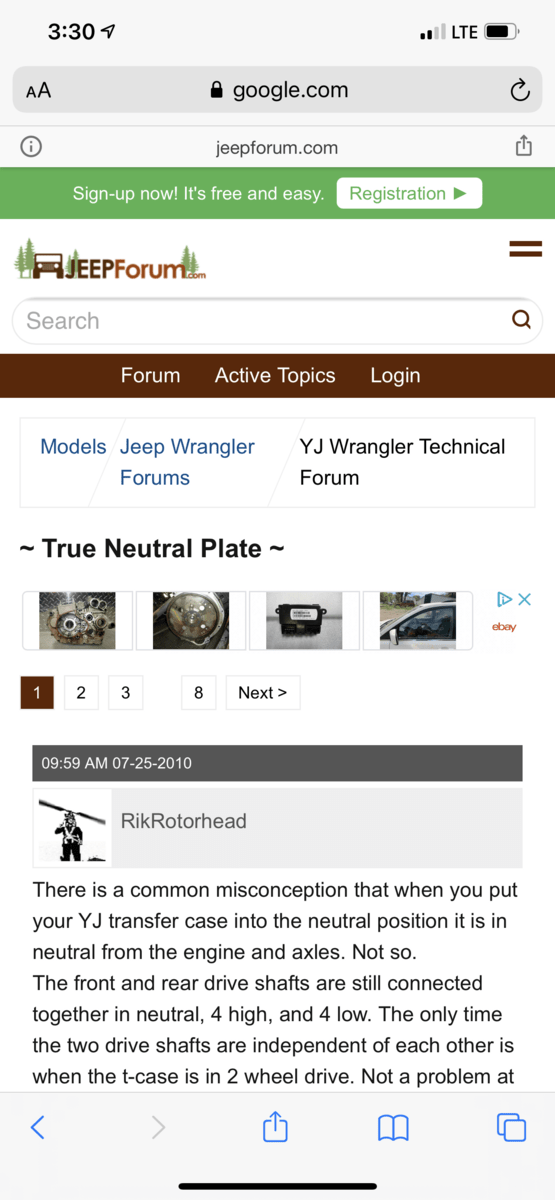

I found the thread for the true neutral TJ plate. Here is the P/N for the plate if anyone is interested. Summitracing.com OMX-1867632
