Help with part identification


Dustingans

New Member
Joined
Jan 17, 2021
Messages
3
Location
Idaho
I’m trying to get my YJ that hasn’t been running for years road worthy again. I just dropped in a long block and got it running however the vacuum lines are a mess. I can’t seem to identify these two components that both have vacuum connections. This is 1990 TBI 2.5l
Thanks for any help!




OP
D

Dustingans

New Member
Joined
Jan 17, 2021
Messages
3
Location
Idaho

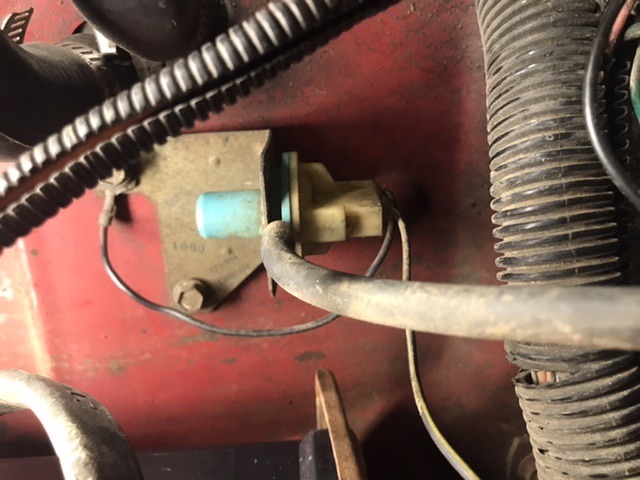

So I believe the first image is the egr/evap solenoid that isn’t hooked up correctly. I have no idea what the second one is.

  • Like
Reactions: Chris

machoheadgames

Certified YJ Researcher
Supporting Member
Joined
May 19, 2020
Messages
302
Location
Dallas, TX

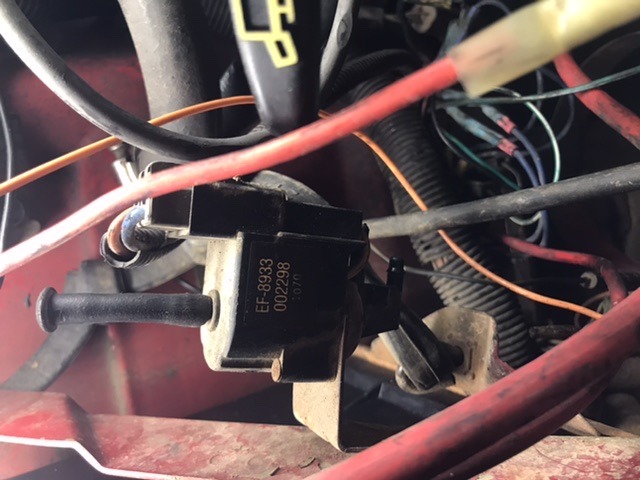

Couldn’t tell you about the first one but the second one is what trips the 4X4 light when the vacuum 4WD system engages.
