CPS grommet falls in

R

rudymags

New Member
Joined
Mar 8, 2023
Messages
5
Location
Lubbock
My '95 yj just started to cut out on me as I drove it down the road. It would hesitate, jerk, as if it was dying. The RPM's did not change, no CEL came on. They tell me it may be a CPS going bad. I just replaced this CPS unit last month. I was taking out this same CPS to test it, and while trying to replace it, the grommet managed to fall into my housing. Question...... how can I get the grommet out? If I cannot, will it hurt my engine when I drive the jeep? Can I just leave it in there? Its a 2.5L, 5 speed, 173K mileage.

  • Like
Reactions: jpjeep26uk
jpjeep26uk

jpjeep26uk

YJ Enthusiast
Joined
Nov 12, 2022
Messages
115
Location
UK
rudymags said:
My '95 yj just started to cut out on me as I drove it down the road. It would hesitate, jerk, as if it was dying. The RPM's did not change, no CEL came on. They tell me it may be a CPS going bad. I just replaced this CPS unit last month. I was taking out this same CPS to test it, and while trying to replace it, the grommet managed to fall into my housing. Question...... how can I get the grommet out? If I cannot, will it hurt my engine when I drive the jeep? Can I just leave it in there? Its a 2.5L, 5 speed, 173K mileage.
Click to expand...
Hi, I would whip the valve cover off and fish that out. From experience it's large enough to snag on a push rod or get caught by a rocker and I don't think you want that. They are made of pretty strong rubber so may be resilient enough to create some trouble before breaking down/ dissolving. I'm not a pro mechanic but I would be straight in there to scoop it out.

OP
R

rudymags

New Member
Joined
Mar 8, 2023
Messages
5
Location
Lubbock
jpjeep26uk said:
Hi, I would whip the valve cover off and fish that out. From experience it's large enough to snag on a push rod or get caught by a rocker and I don't think you want that. They are made of pretty strong rubber so may be resilient enough to create some trouble before breaking down/ dissolving. I'm not a pro mechanic but I would be straight in there to scoop it out.
Click to expand...
The grommet fell into the tansmission bell housing.

Flyer58

Flyer58

YJ Enthusiast
Joined
Apr 12, 2020
Messages
749
Location
Magnolia, Texas

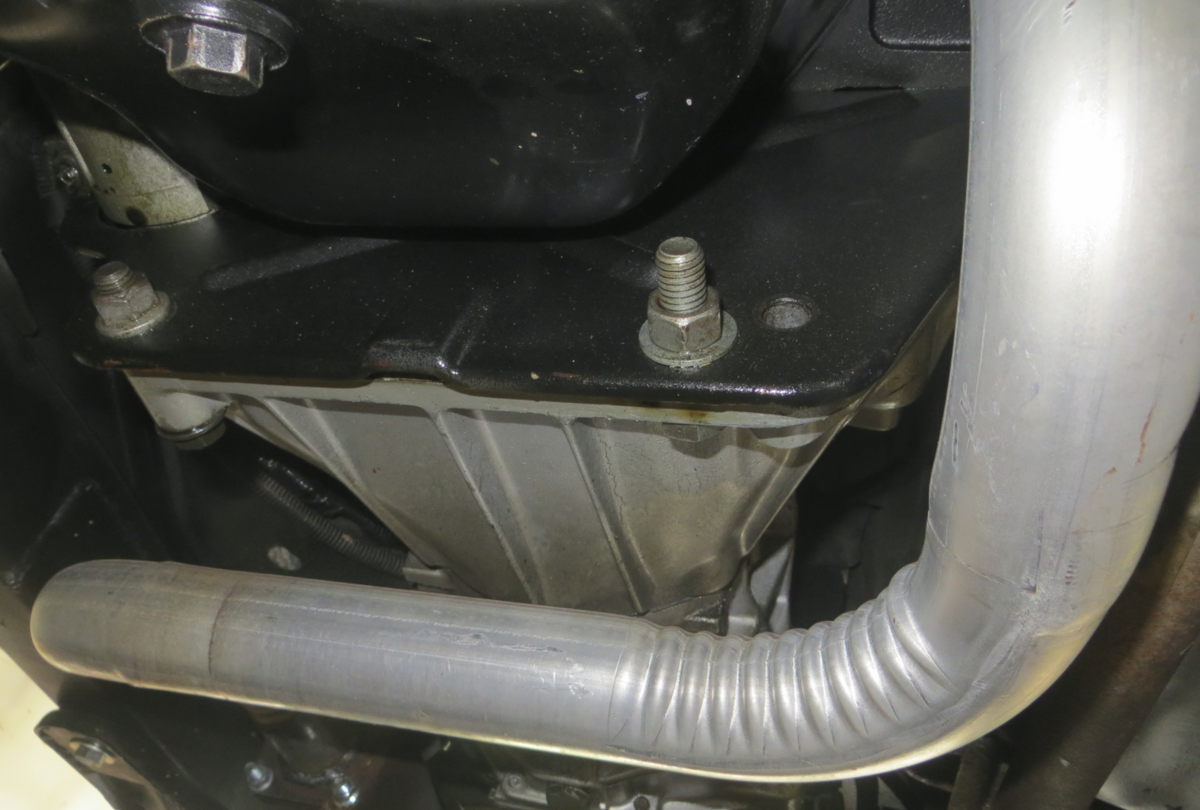

My 2.4L 5-speed has an access plate on the lower front part of the bell housing. It can be removed by removing a couple of bolts. Those two huge bolts/nuts only hold the sheet metal plate in place. I can't recall but I think it goes around the starter.
