95 yj headlight spring

Gilaguy23

YJ Enthusiast
Joined
Apr 12, 2021
Messages
650
Location
Q town New Mexico
Guess we can ask why did you unhook them? All you needed to do is pull the chrome bezel with the 4 screws and pop the bulb out. Cant say without looking but if you pulled the bulb back out the way its done IIRC you'd have lots of room to get a hand in there to hook em back up.

OP
peter built

peter built

New Member
Joined
Jan 25, 2022
Messages
5
Location
Mount Holly N.C.
Hi and thanks for the reply and the help. I didn't know better so I disconnected the spring, I should of asked for help first.
Now I will remove the 4 screws, the chrome ring and the bulb and that will give me room to connect the spring.

OP
peter built

peter built

New Member
Joined
Jan 25, 2022
Messages
5
Location
Mount Holly N.C.

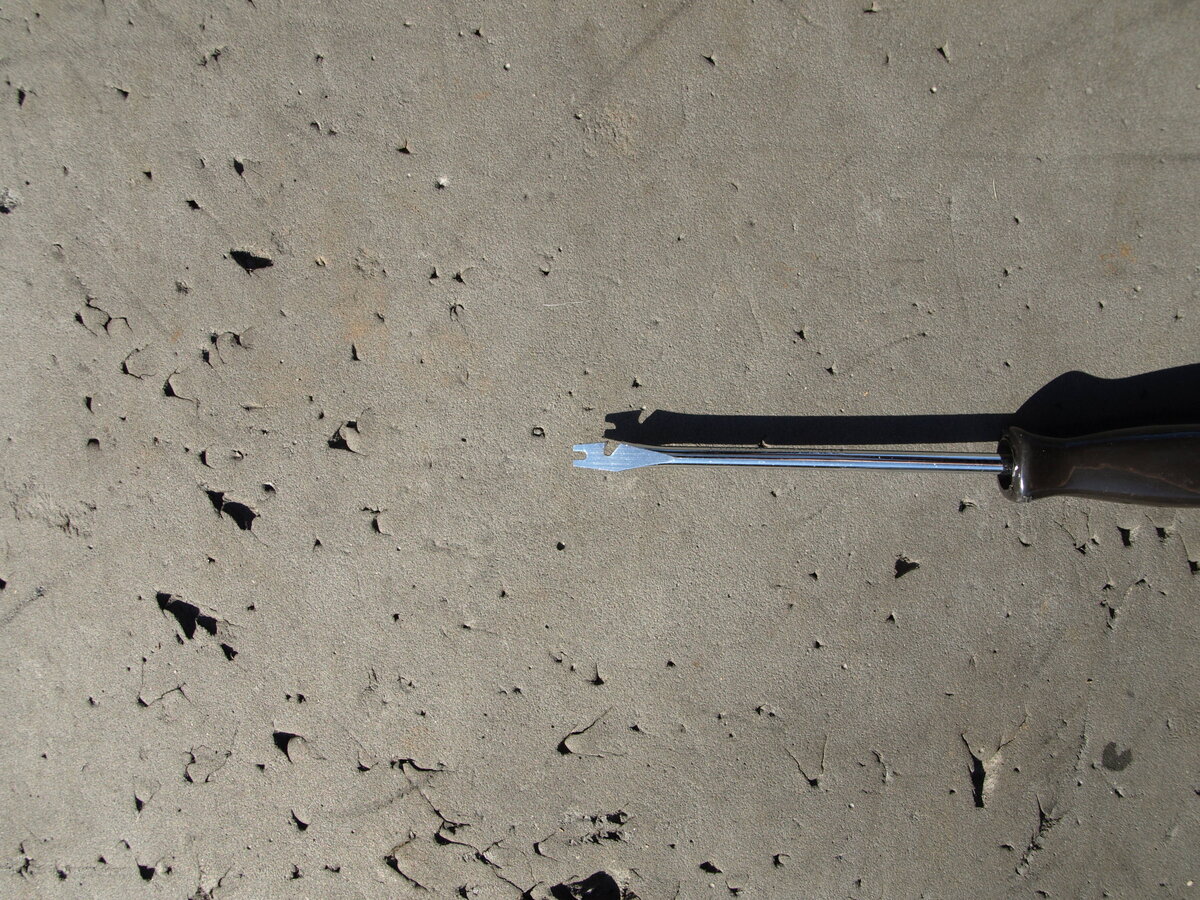

I finally got the spring connected, I bought a screwdriver with a 'notch' in the end to grab the spring and put it back where it belongs.


Mclearg

New Member
Supporting Member
Joined
Jan 13, 2022
Messages
10
Location
Dallas
Can you share a picture of the spring connected?
I'm going through a rebuild and the UK didn't have springs on the headlight buckets to start with. Many thanks

OP
peter built

peter built

New Member
Joined
Jan 25, 2022
Messages
5
Location
Mount Holly N.C.
Look at the rear side of the 'headlamp bucket', you will see two bumps with an opening.
That is where the front of the spring attaches too.
Line up the bucket and look straight back, for a hole to attach the rear of the spring too.

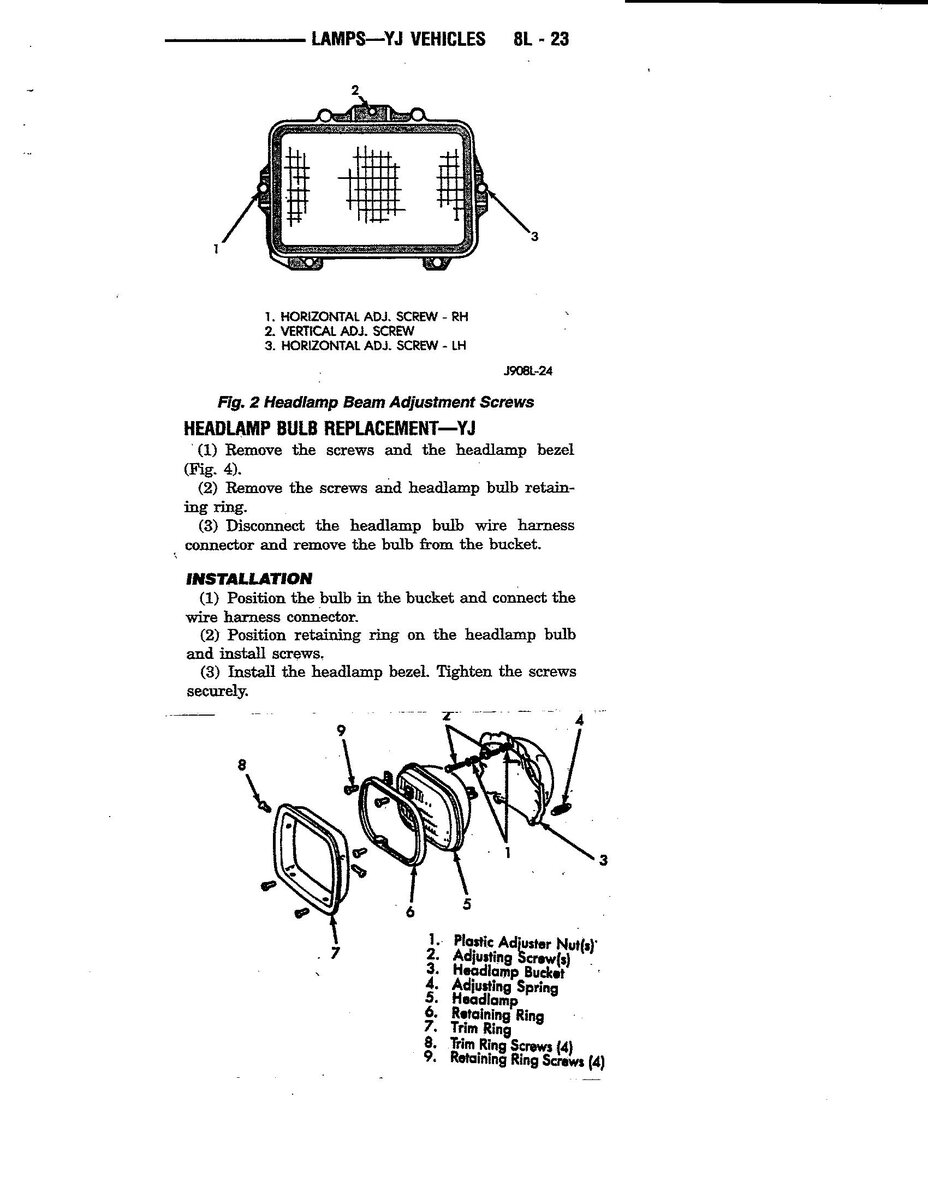

Jeep headlight.jpg


Mclearg

New Member
Supporting Member
Joined
Jan 13, 2022
Messages
10
Location
Dallas
Thanks friend, I'll get back on it tomorrow. Too hot in the garage to do a full a shift
