Transfer Case Rear Seal Install


Wschromm

New Member
Joined
Sep 27, 2020
Messages
2
Location
AZ
Hey all, having trouble getting the transfer case rear output seal installed. I removed my old seal due to a leak and got a replacement based on orielly’s website (National Oil Seal PN 710046).

My problem is I can’t get the seal started in to the flange as it seems slightly oversized. I have some familiarity with these seals and that they shouldn’t be a slip fit but even with my a 2-1/4 pipe flange I can’t lightly hammer in the seal.

Any suggestions? Thanks.


jeepjoe43

YJ Enthusiast
Lifetime Supporting Member
Joined
Dec 4, 2020
Messages
370
Location
Black Canyon City, AZ 85324
Hey all, having trouble getting the transfer case rear output seal installed. I removed my old seal due to a leak and got a replacement based on orielly’s website (National Oil Seal PN 710046).

My problem is I can’t get the seal started in to the flange as it seems slightly oversized. I have some familiarity with these seals and that they shouldn’t be a slip fit but even with my a 2-1/4 pipe flange I can’t lightly hammer in the seal.

Any suggestions? Thanks.
Try freezing the seal to shrink it a little, might get you just enough.
Or heating the tail housing with a heat gun,

Last edited:

Flyer58

YJ Enthusiast
Joined
Apr 12, 2020
Messages
385
Location
Magnolia, Texas

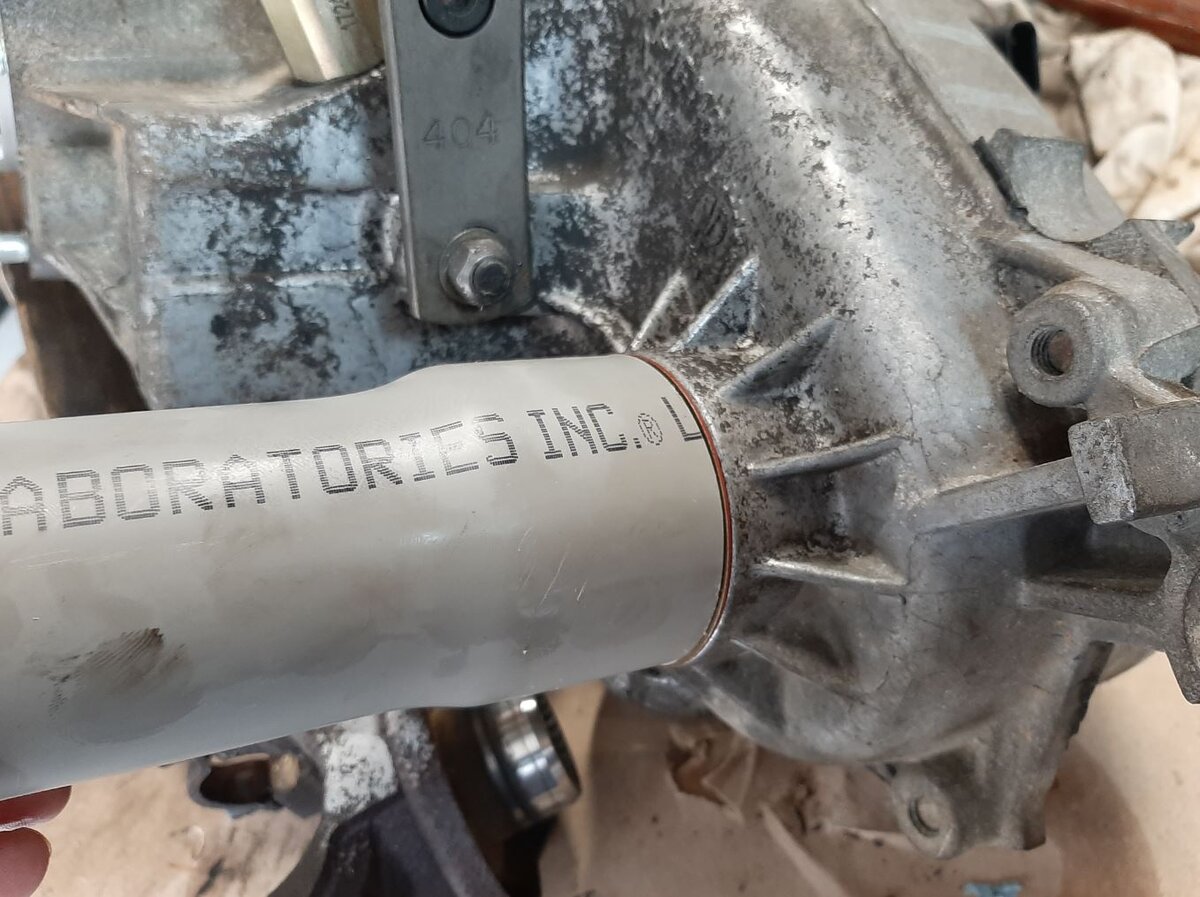

No problem here. I used a short PVC pipe to help evenly tap the seal into place.

I used the same Part#.
