Oil Sending Unit

Vetteonr

New Member
Joined
Mar 10, 2022
Messages
6
Location
Prescott, Arizona

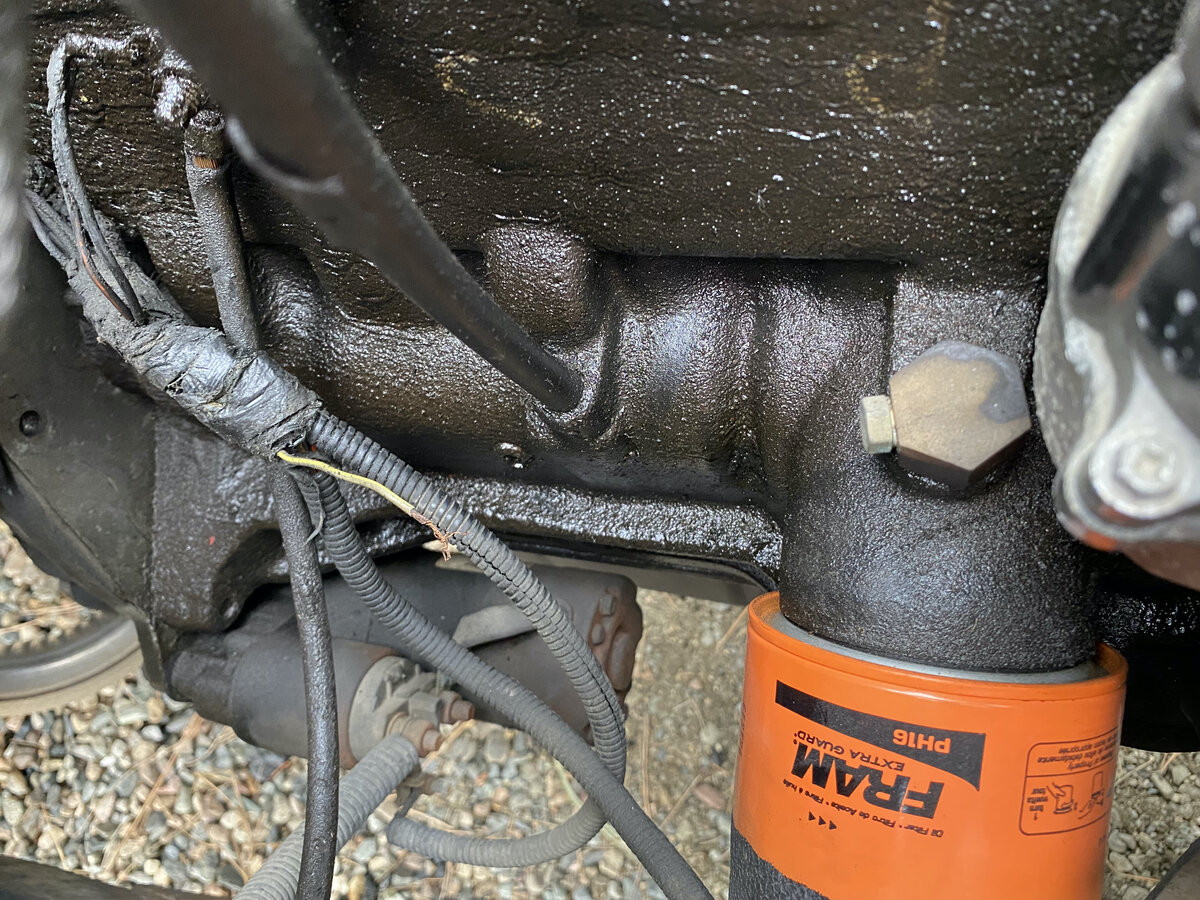

I just discovered that the yahoo who owned my jeep before me must have removed the oil sending unit. They installed a plug where the unit would go and left the wire hanging there. Does anyone have any ideas on how to remedy this? I'll attach a photo. Thanks!


Flyer58

YJ Enthusiast
Joined
Apr 12, 2020
Messages
627
Location
Magnolia, Texas
Short answer is remove the plug and install a new pressure sending unit and plug in the connector. It should be a standard 1/4in pipe thread.

Long answer is those sending units have a history of splitting open and sending all you oil out over the road and if you don't catch the pressure needle fluctuating then the sound of an engine running without oil will.

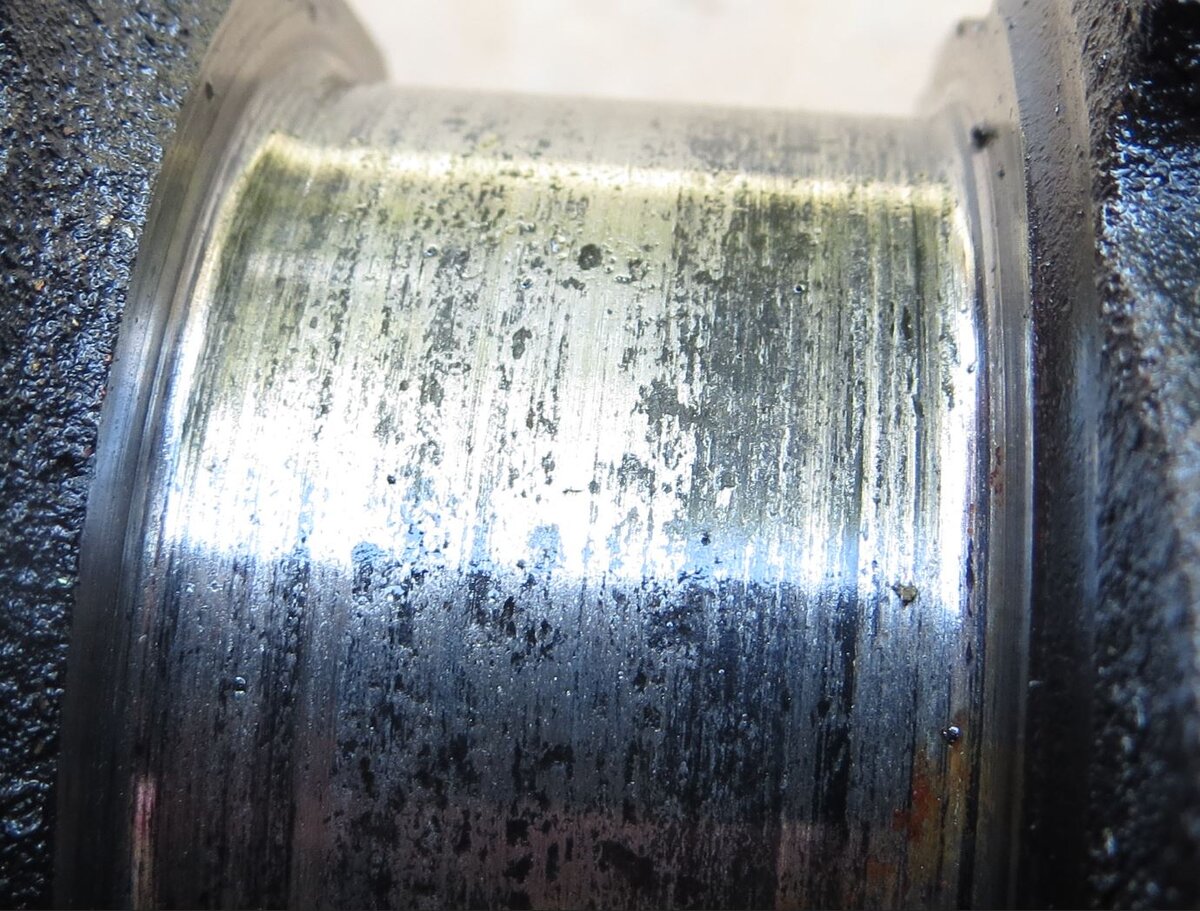

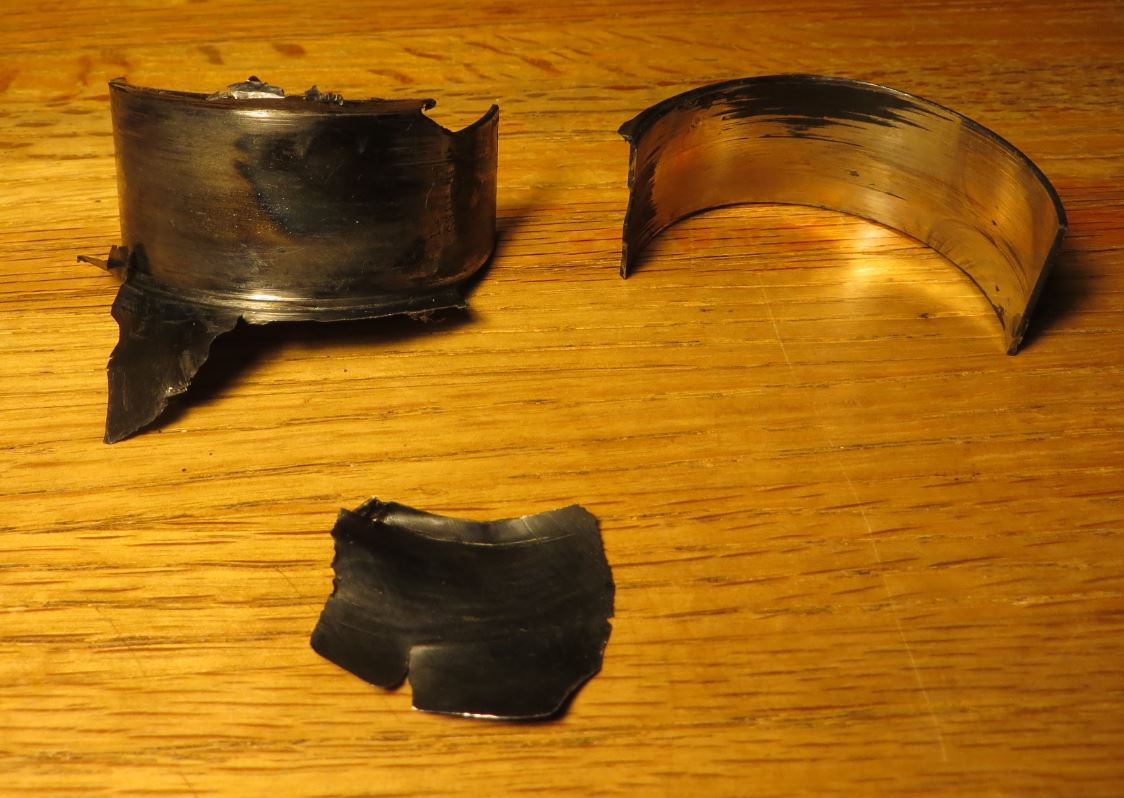

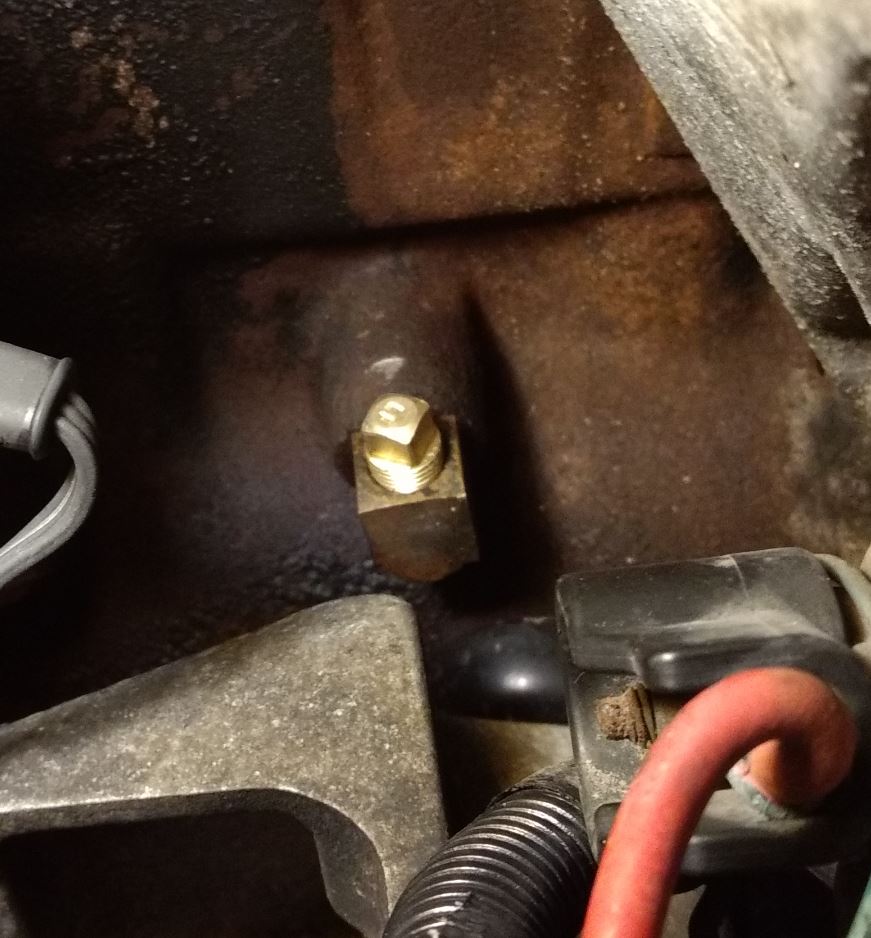

This happened to the previous owner of my 92 YJ and it trashed the engine. As a test I put a temporary plug in along with a few quarts of oil but the engine was too far gone. The sending unit was spraying out about a quart every minute.







SirDoopYJ

YJ Enthusiast
Supporting Member
Joined
Oct 2, 2020
Messages
732
Location
Stick Red, Louisiana
Short answer is remove the plug and install a new pressure sending unit and plug in the connector. It should be a standard 1/4in pipe thread.

Long answer is those sending units have a history of splitting open and sending all you oil out over the road and if you don't catch the pressure needle fluctuating then the sound of an engine running without oil will.

This happened to the previous owner of my 92 YJ and it trashed the engine. As a test I put a temporary plug in along with a few quarts of oil but the engine was too far gone. The sending unit was spraying out about a quart every minute.

View attachment 119628

View attachment 119629

View attachment 119630

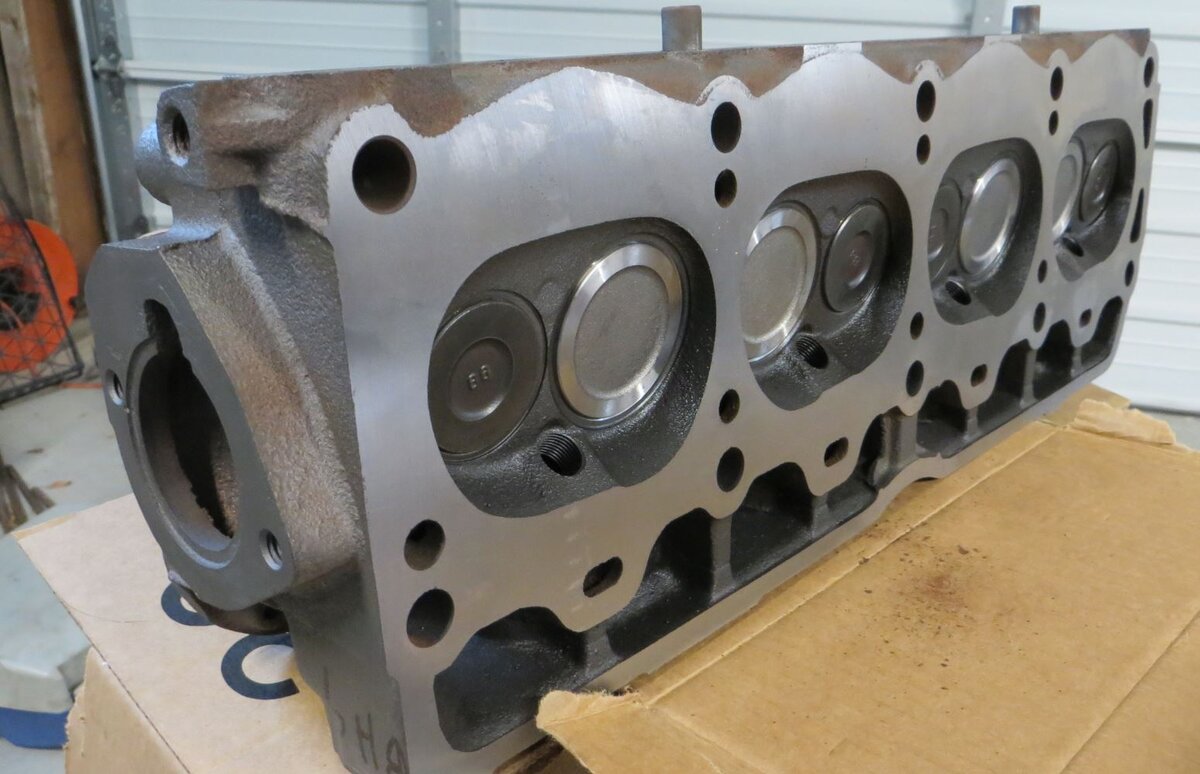

Were you able to salvage the original head? or was that toast too?


Flyer58

YJ Enthusiast
Joined
Apr 12, 2020
Messages
627
Location
Magnolia, Texas
I can install the new sender but my question is about the wiring. As you can see in the photo the plug in part is not there.
Ok I see that now. You'll have to search online for an oil pressure switch connector for your year/model YJ along with a pressure sending unit. I got my sending unit at AutoZone.


Gilaguy23

YJ Enthusiast
Joined
Apr 12, 2021
Messages
611
Location
Q town New Mexico
The connector is nothing but a female spade connector on my 91. Of course the OEM one has a plastic boot over it but its fine without it. Personally Id install an aftermarket oil gauge and sender as the oem gauges are as about accurate as Biden and his mouth piece Pistaki.

  • Like
Reactions: ytradio

machoheadgames

Certified YJ Researcher
Supporting Member
Joined
May 19, 2020
Messages
1,312
Location
Dallas, TX
On 92-95 the oil pressure switch has a 1 wire connector. Buy the connector, the sending unit, splice on the connector and plug em up.

Personally my gauges have never been anything but fully accurate. The older 87-91 gauges are in general, a lot less reliable. There are still problems with some of the later ones too but I have seen many that work perfectly fine.


machoheadgames

Certified YJ Researcher
Supporting Member
Joined
May 19, 2020
Messages
1,312
Location
Dallas, TX
Thanks macho. I was looking at those on rockauto and was concerned that it is a one wire set up and the connector has two wires.
Oil pressure circuit is a simple one wire setup. There is only one terminal inside the sending unit itself. For whatever reason, Jeep decided to use a two terminal connector for it. You'll be good with those parts for sure.


Sunsport

New Member
Joined
Dec 5, 2020
Messages
21
Location
Halifax, Nova Scotia
As others have said, looks like a quick fix for you - install a new unit and replace the connector. I have never had one leak on mine, but my original did go bad and was reading pretty much pegged all the time. I replaced it with one from rock auto and it has been good ever since. About 10 minutes to change (or less) on my 4.2.


machoheadgames

Certified YJ Researcher
Supporting Member
Joined
May 19, 2020
Messages
1,312
Location
Dallas, TX

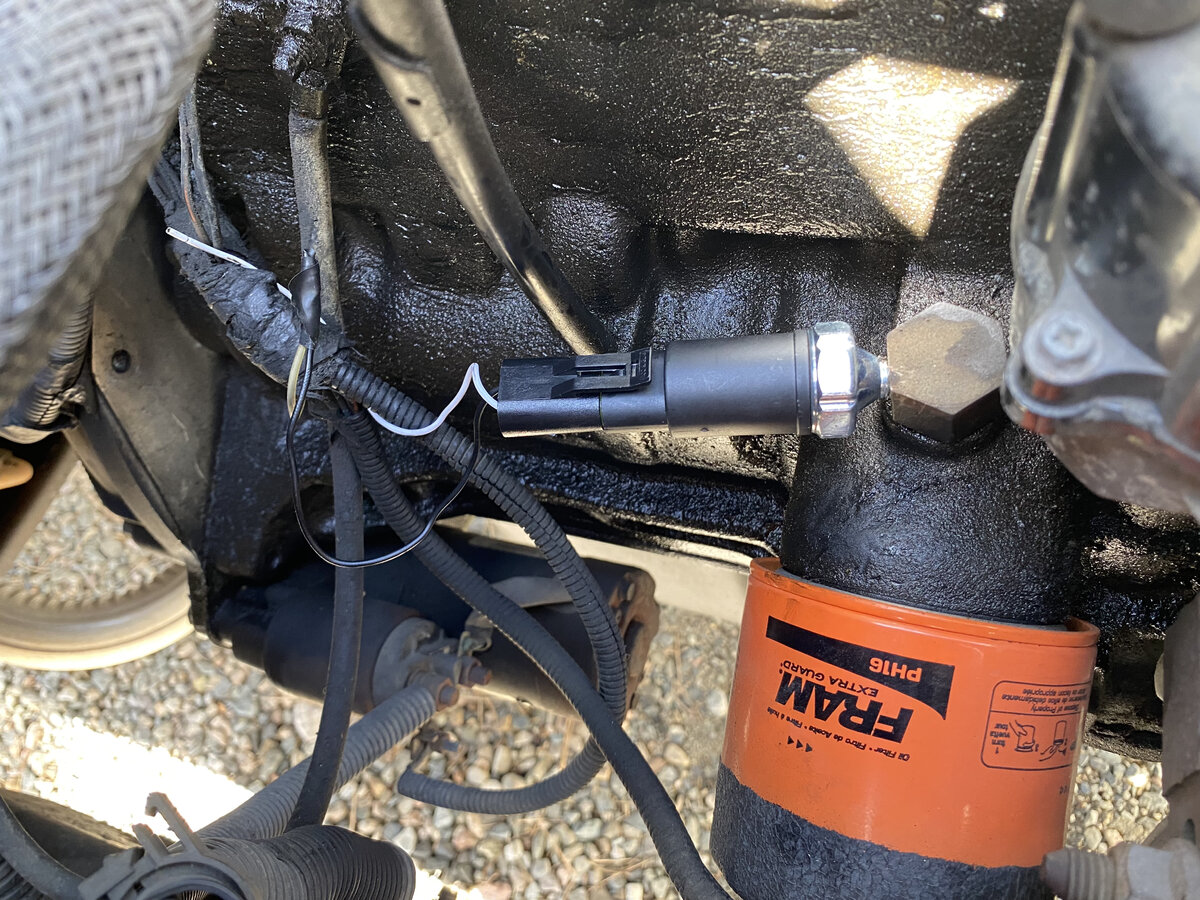

Did you just twist those wires together and put elec tape on them or are they soldered? Just curious.
Not sure what he did but in my mind a mechanically crimped butt connection with weather sealed heat shrink is pretty much always best. I don’t like soldering as I find it to be more work to install and not any better performance or durability than crimping. In other words, I see no reason to solder.

I don’t consider twisting/taping wires with electrical tape to be a viable install ever really. After a while electrical tape gets gooey and starts coming apart and eventually that connection will fail.

  • Like
Reactions: gixxerkid3

Flyer58

YJ Enthusiast
Joined
Apr 12, 2020
Messages
627
Location
Magnolia, Texas
I usually brush on some liquid electrical tape over the crimped connectors and never had any problem other than it dripping on clothing but one it sets it lasts forever.


Stoopid Jeep

YJ Enthusiast
Joined
Dec 25, 2021
Messages
159
Location
North Idaho
Since we're sharing. I solder every splice and wrap it in adhesive lined heat shrink. When done properly, the splice is less than an inch long and is barely noticeable. It fits in a wire loom and is a lifetime fepair. I'm super OCD about wiring. Butt connectors make my eye twitch.


machoheadgames

Certified YJ Researcher
Supporting Member
Joined
May 19, 2020
Messages
1,312
Location
Dallas, TX
Since we're sharing. I solder every splice and wrap it in adhesive lined heat shrink. When done properly, the splice is less than an inch long and is barely noticeable. It fits in a wire loom and is a lifetime fepair. I'm super OCD about wiring. Butt connectors make my eye twitch.
I think if you saw what I use you would agree they are a lifetime repair.
