New Vacuum Disconnect

Flyer58

YJ Enthusiast
Joined
Apr 12, 2020
Messages
918
Location
Magnolia, Texas

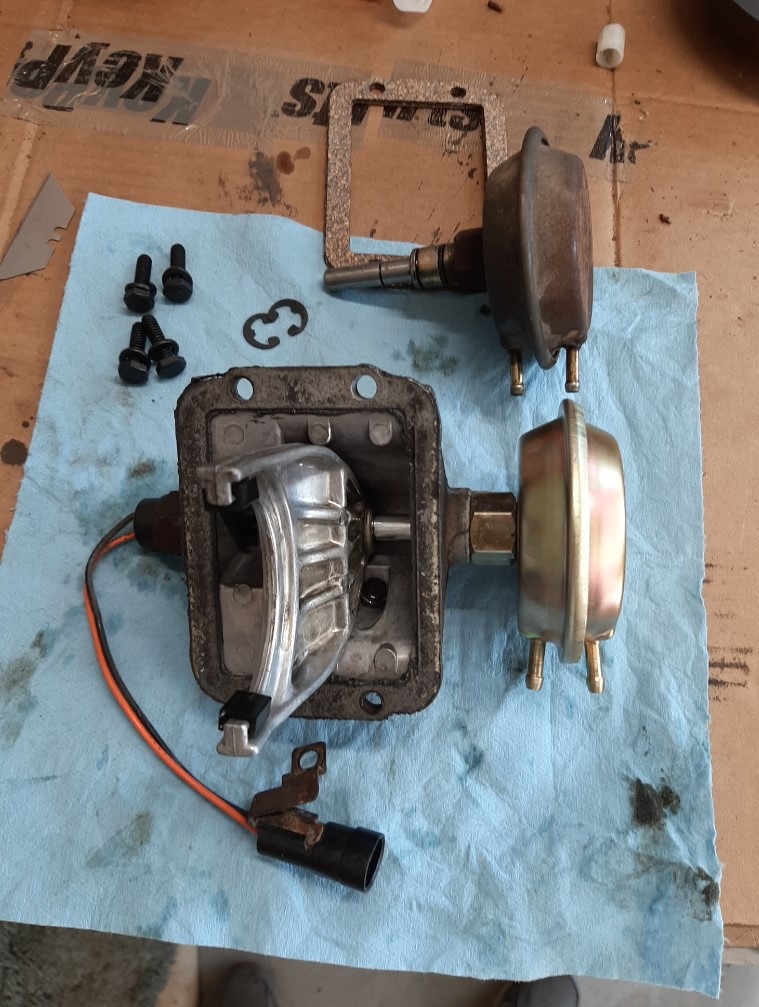

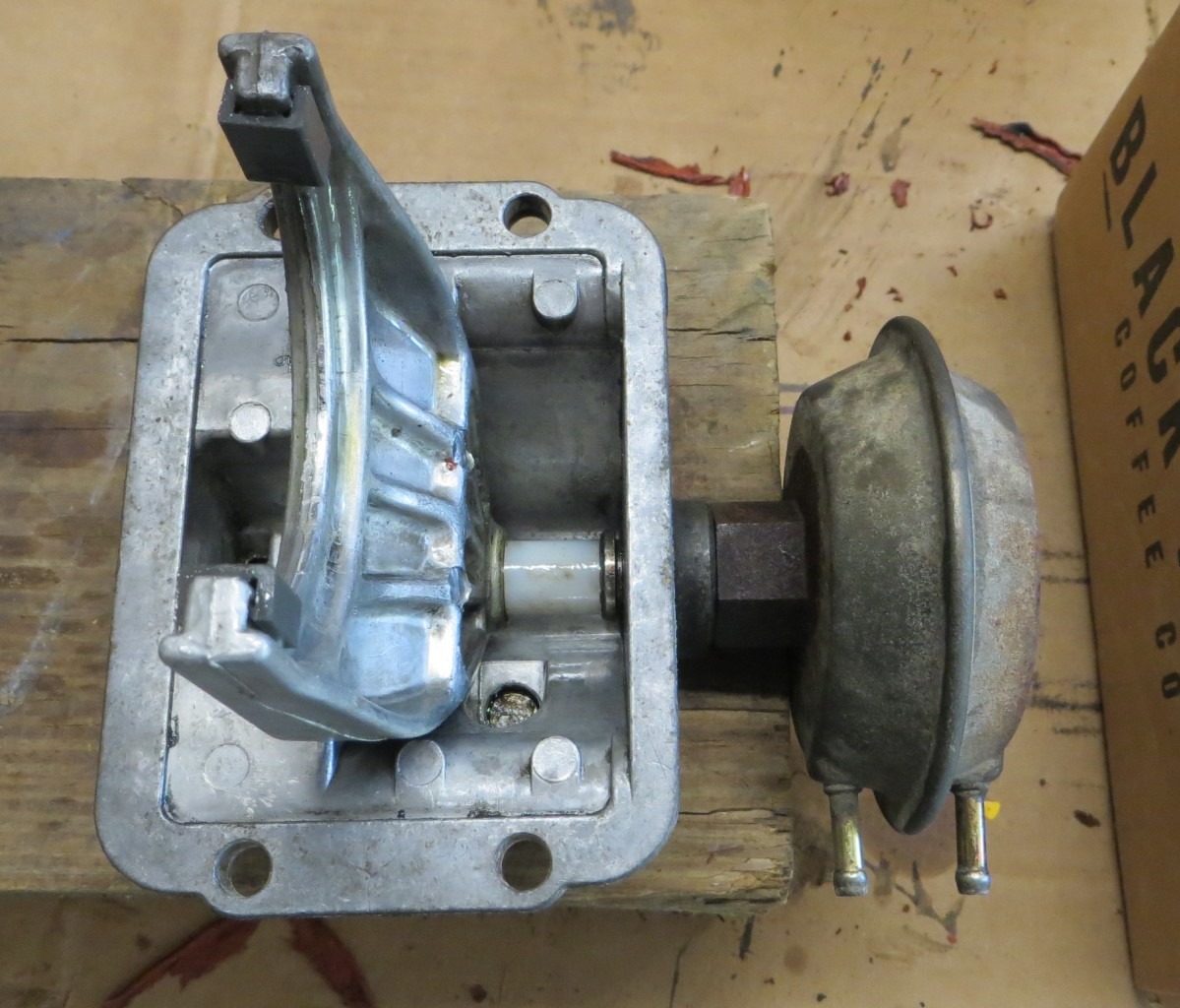

Well after my 65 cent mechanical fix to lock the Dana split front axle I've decided to go back to the original set up. Nothing wrong with the spacer I put in as it all worked great but after thinking about the type of daily driving I do, MPG's, and wear on the drivetrain I went ahead and installed a new vacuum motor. Come to find out the old vacuum motor was frozen solid. I put it in a vice and rapped it few times and now it works ok so I guess I'll keep it as a spare.

Also took the time to pull out the vacuum harness and re-seal all the rubber splice connectors.

Once all together and tested I found the vacuum was very weak at the front connector with drives the motor. Previously it tested great. Back under to remove the T-case vacuum switch and found it was bad with the vacuum going to all ports and poorly switching between the two. Parts on order, should be here today.
