How-To Jumper Your Fuel Pump

Vasq

New Member
Joined
Apr 13, 2020
Messages
3
Location
Everett, WA
Picked this up a while back, might be obvious to some.

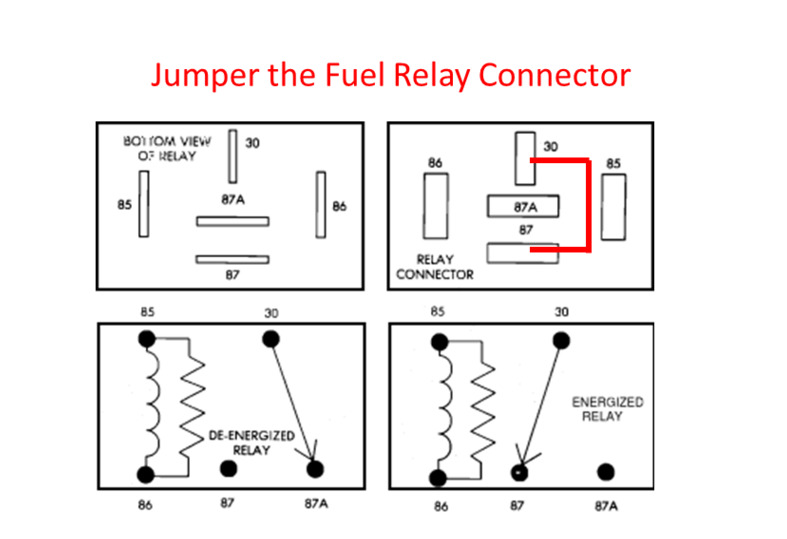

YJ fuel pump jump_2.png

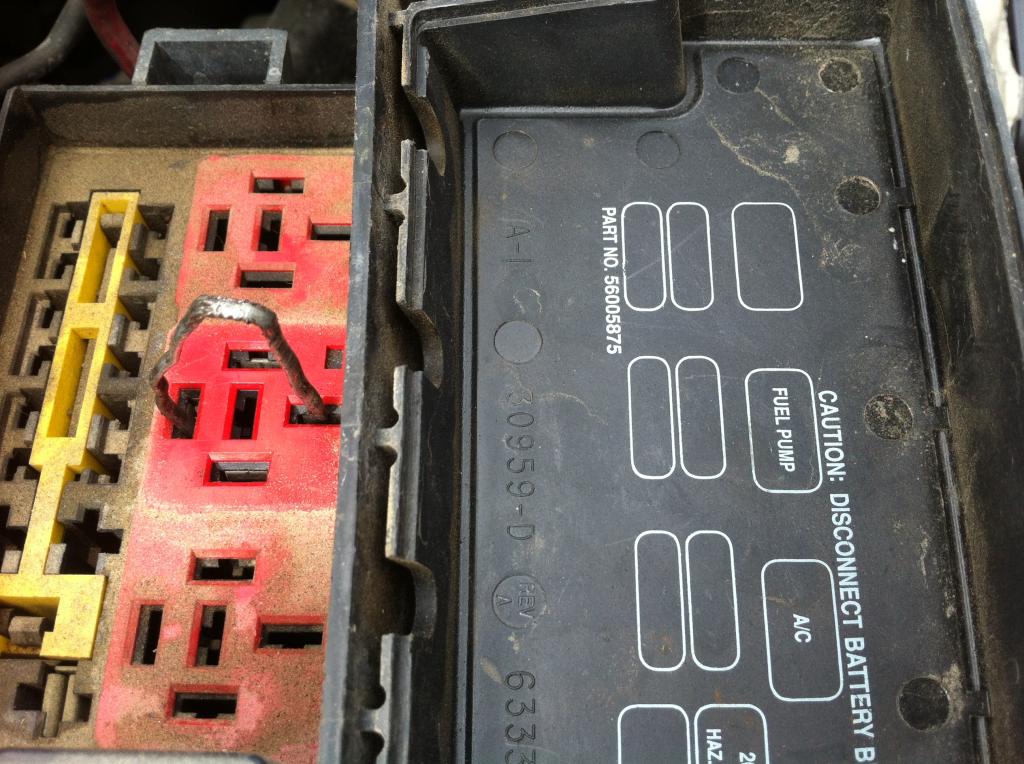

YJ fuel pump jump_1.jpg

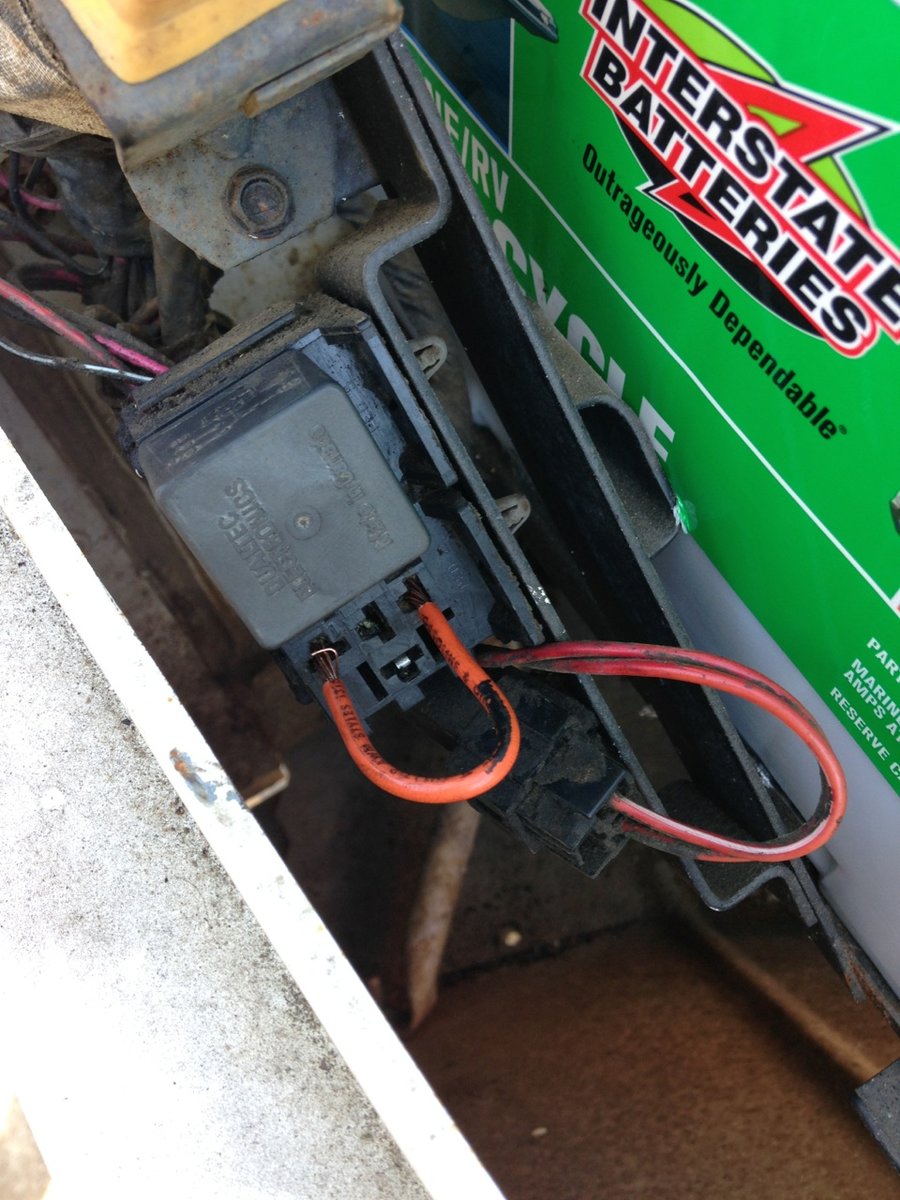

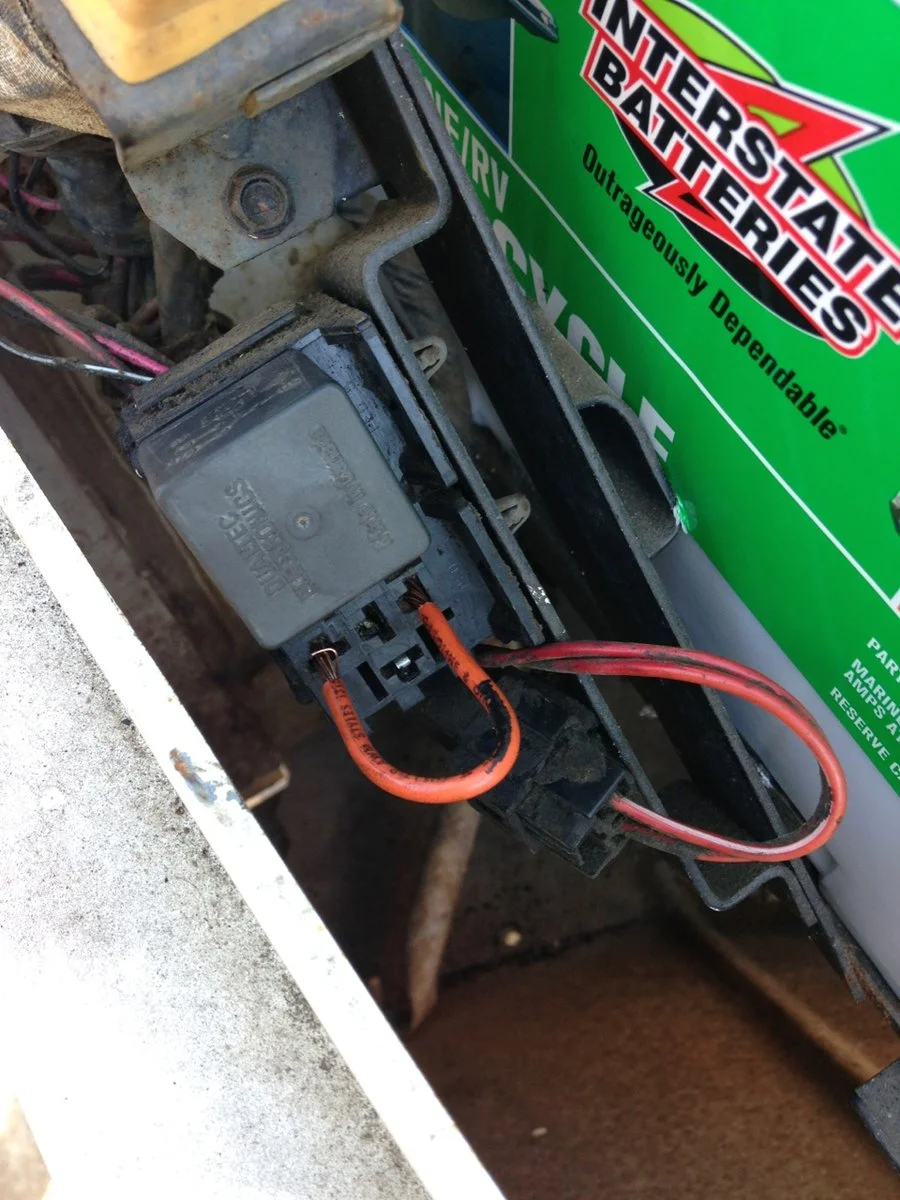

And if you have a pre-1992, it might be over next to the battery.



See? I'm helping :)

  • Like
Reactions: RickyD and Chris

Fbomb7

New Member
Joined
May 11, 2020
Messages
1
Location
Williamsport Pa
87 yj 2.5 tbi is stalling once hot and not starting when it is warm. Fuel pump relay clicks but no pump when this happens. Do you think this will help?

OP
Vasq

Vasq

New Member
Joined
Apr 13, 2020
Messages
3
Location
Everett, WA
this will jump the relay and supply power to the pump constantly. Its more of a troubleshooting method rather than a solution. if jumping the relay causes the pump to run correctly then your relay could be a cause, or something forward of that.


T-Rex Jeepster

The Unoffendable
Supporting Member
Joined
Sep 13, 2021
Messages
135
Location
Middle Tennessee
Can say that all of the relays on my '95 YJ are the same foot pattern....So if I think ones gone bad, I just toot the horn and if it works,
Just swap them over to see if there are any problems....
