Help with 4WD indicator light


BuckeyeJeep

New Member
Joined
Nov 19, 2021
Messages
12
Location
Lancaster, Ohio
Morning guys, happy thanksgiving
Got a question concerning my 4wd indicator light……. 95 YJ, 4 liter 5 speed
My 4wd works, both high and low, but the indicator light on my gauge panel doesn’t come on.
I’ve changed bulbs and that’s not the issue
Tried to read about the vacuum and 2 piece axles etc but wondered if there was a switch like a replaced in an 02 TJ?
Confused and any help or insight is appreciated. Thanks


Wmaltby

New Member
Joined
Jun 4, 2021
Messages
6
Location
Zionsville
Are you sure your in “4 wheel drive”
The locker on the front axle is vacuum actuated and Meg have a vacuum leak…. If so, you may only be 3-wheel drive. My 89 had all tubes cracked and broken…. I switched to posi-lok.

OP
B

BuckeyeJeep

New Member
Joined
Nov 19, 2021
Messages
12
Location
Lancaster, Ohio
I’m not 100% positive, but when I’m 4 wheel drive on dry pavement the steering wheel kinda jerks back and forth and grabs like it’s supposed to in 4 wheel drive


machoheadgames

Certified YJ Researcher
Supporting Member
Joined
May 19, 2020
Messages
950
Location
Dallas, TX

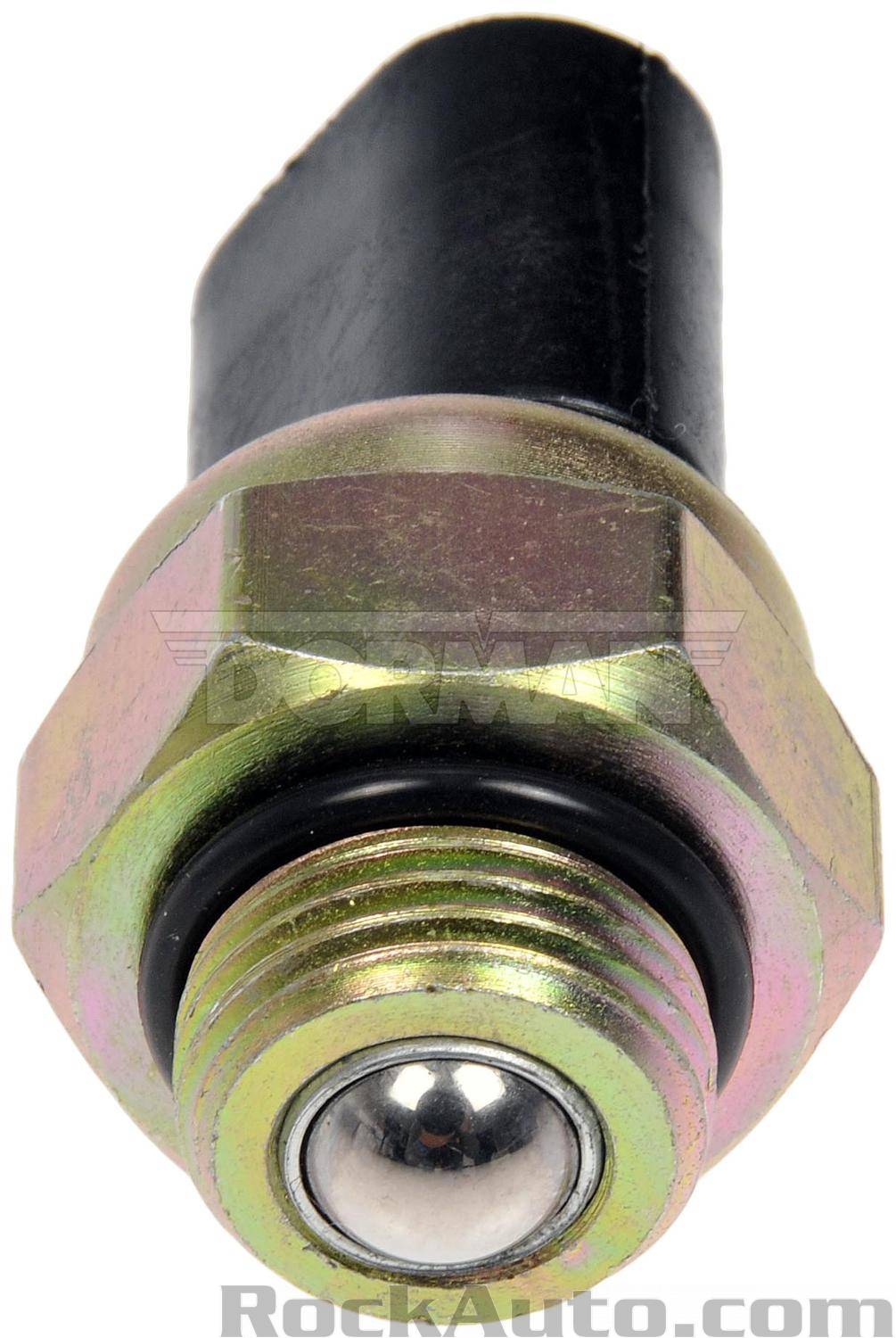

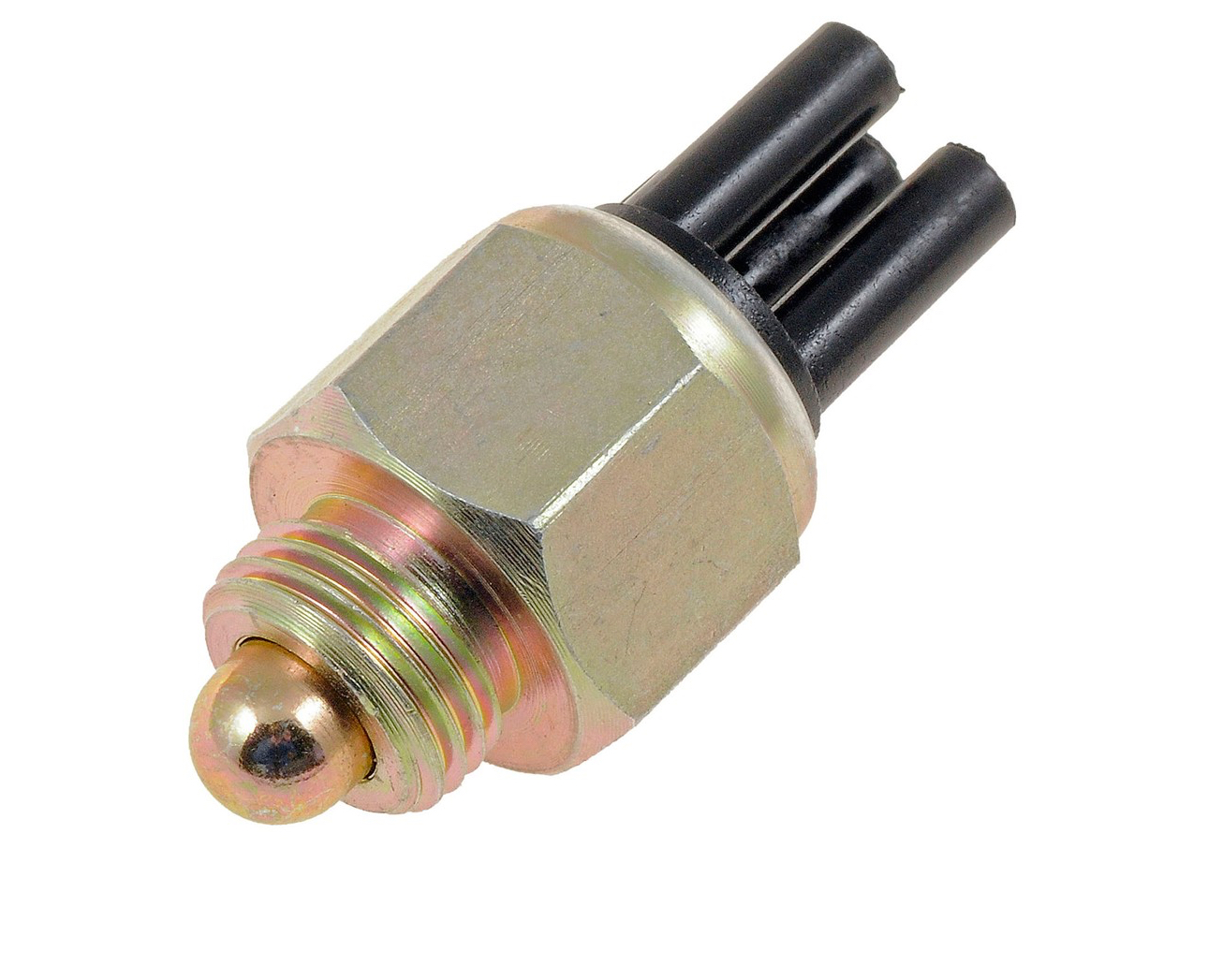

The switch that lights the light is built into the vacuum housing. Could be that your vacuum CAD isn’t engaging, or that your switch is dead.
