Dana 30 HP gear pattern


Adam r

New Member
Joined
Oct 10, 2020
Messages
3
Location
Boston

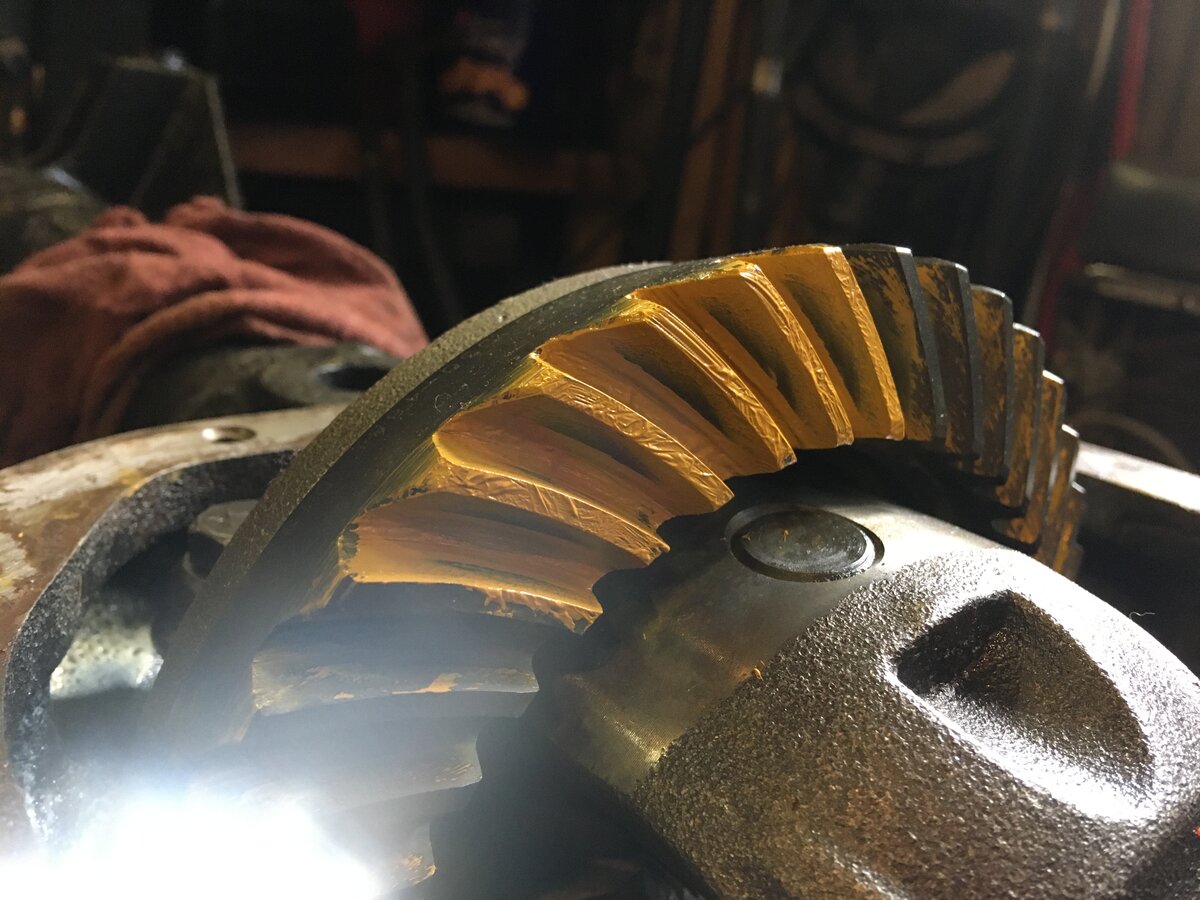

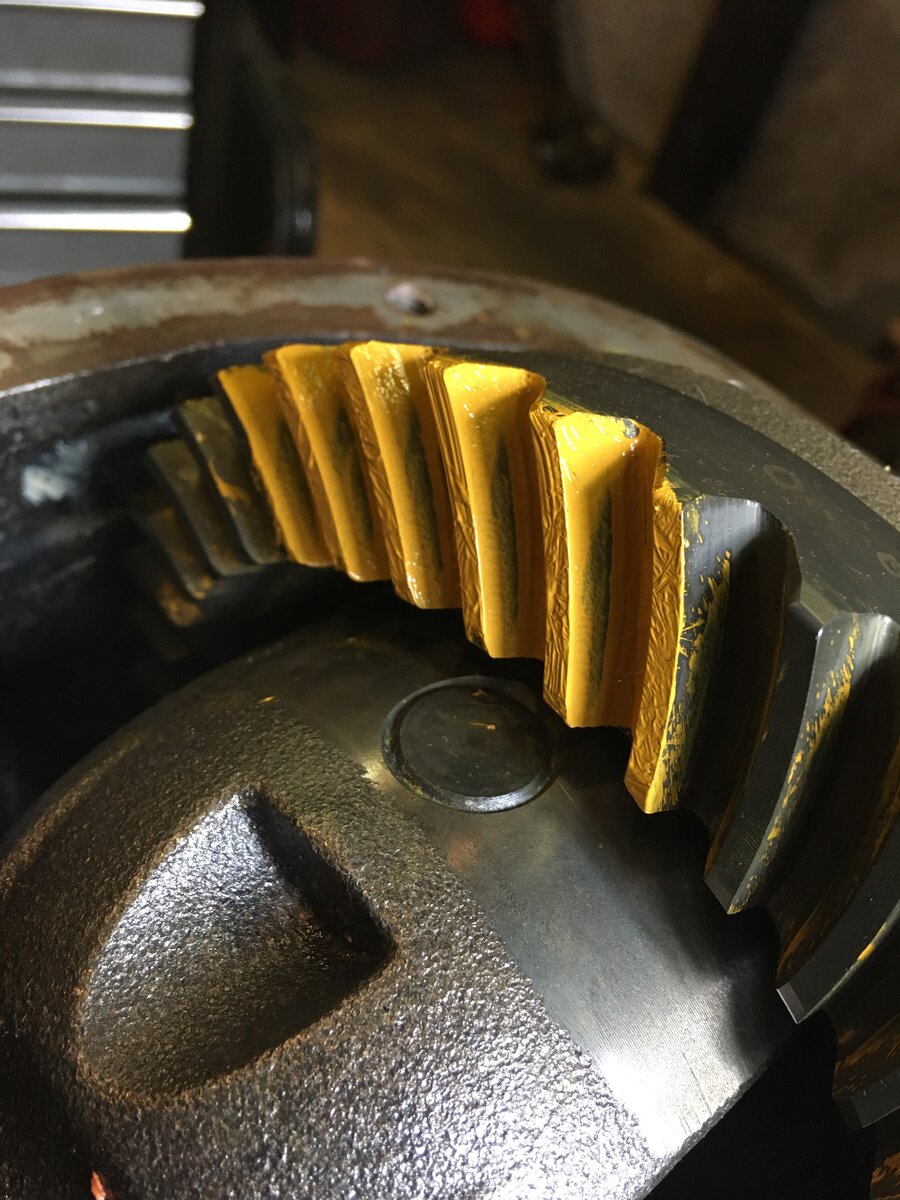

Working on rebuilding a Dana 30 HP. Was wondering if im getting close to the right gear pattern. Getting a lot of mixed messages reading other sights. I appreciate any insight.


  • Like
Reactions: Whiplash2130
OP
A

Adam r

New Member
Joined
Oct 10, 2020
Messages
3
Location
Boston
That to me looks like you are almost there, yes.
That to me looks like you are almost there, yes.
Thanks Chris judging by the current pattern what do you think will be The best coarse of action to get it close to perfect? This is my first rebuild and it’s kinda throwing me off a little bit. But practice makes perfect.

  • Like
Reactions: Welder57 and Chris

Chris

Administrator
Staff Member
Joined
Sep 28, 2015
Messages
29,811
Location
Salem, Oregon
Thanks Chris judging by the current pattern what do you think will be The best coarse of action to get it close to perfect? This is my first rebuild and it’s kinda throwing me off a little bit. But practice makes perfect.

You're brave! This is the one thing I've been too afraid to do myself out of fear of really messing something up. I mean I can rebuild an engine, but gears just seems so daunting.
