94 2.5 no start after clutch replacement (wiring issue?)

Carterconroy1

New Member
Joined
Jul 27, 2022
Messages
1
Location
Maryland

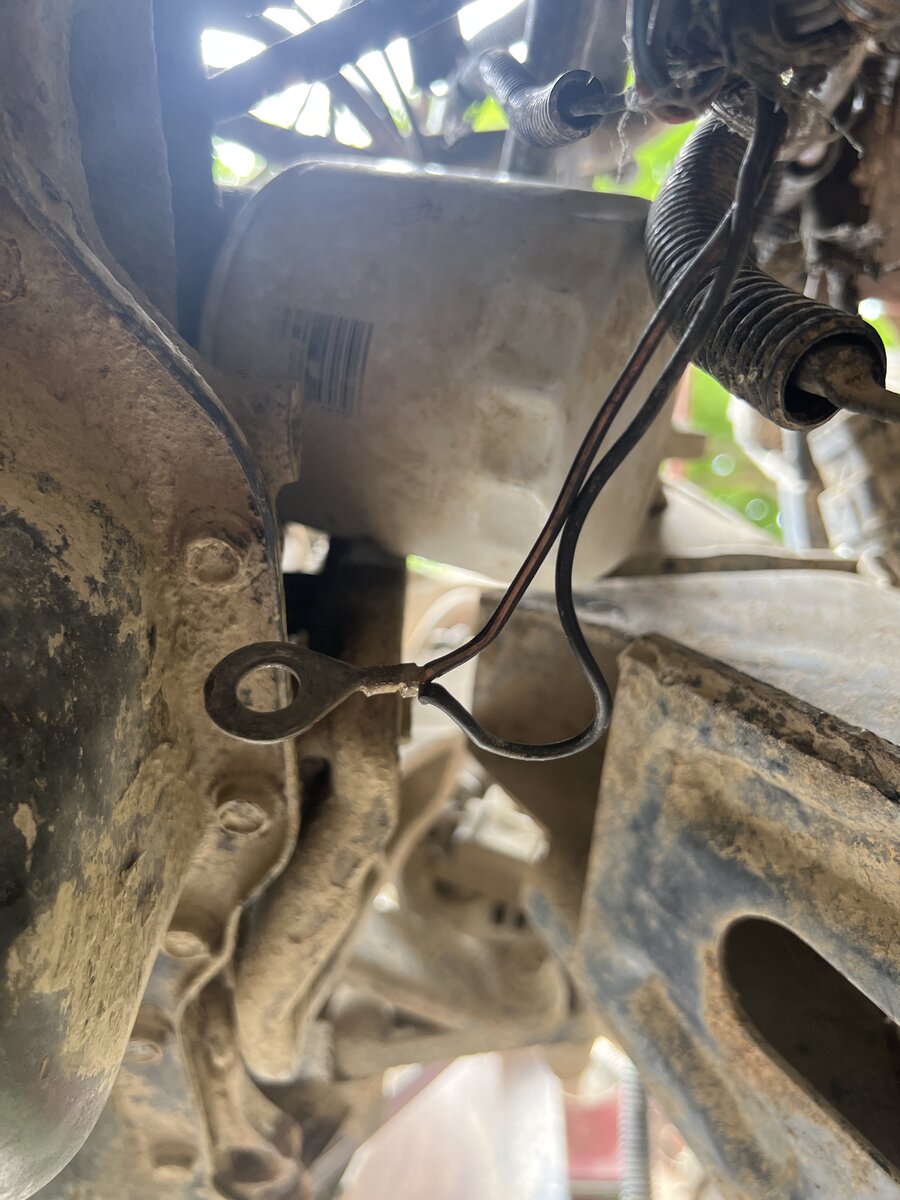

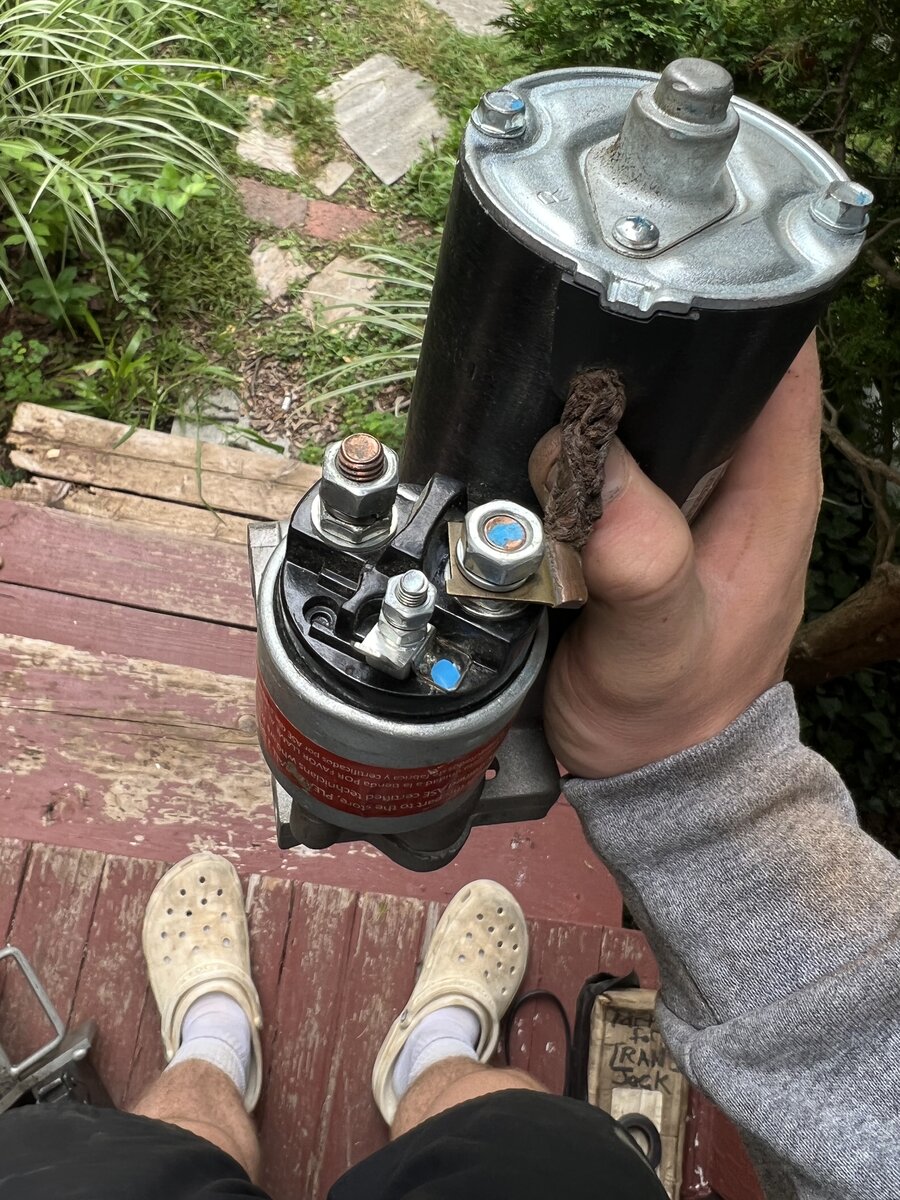

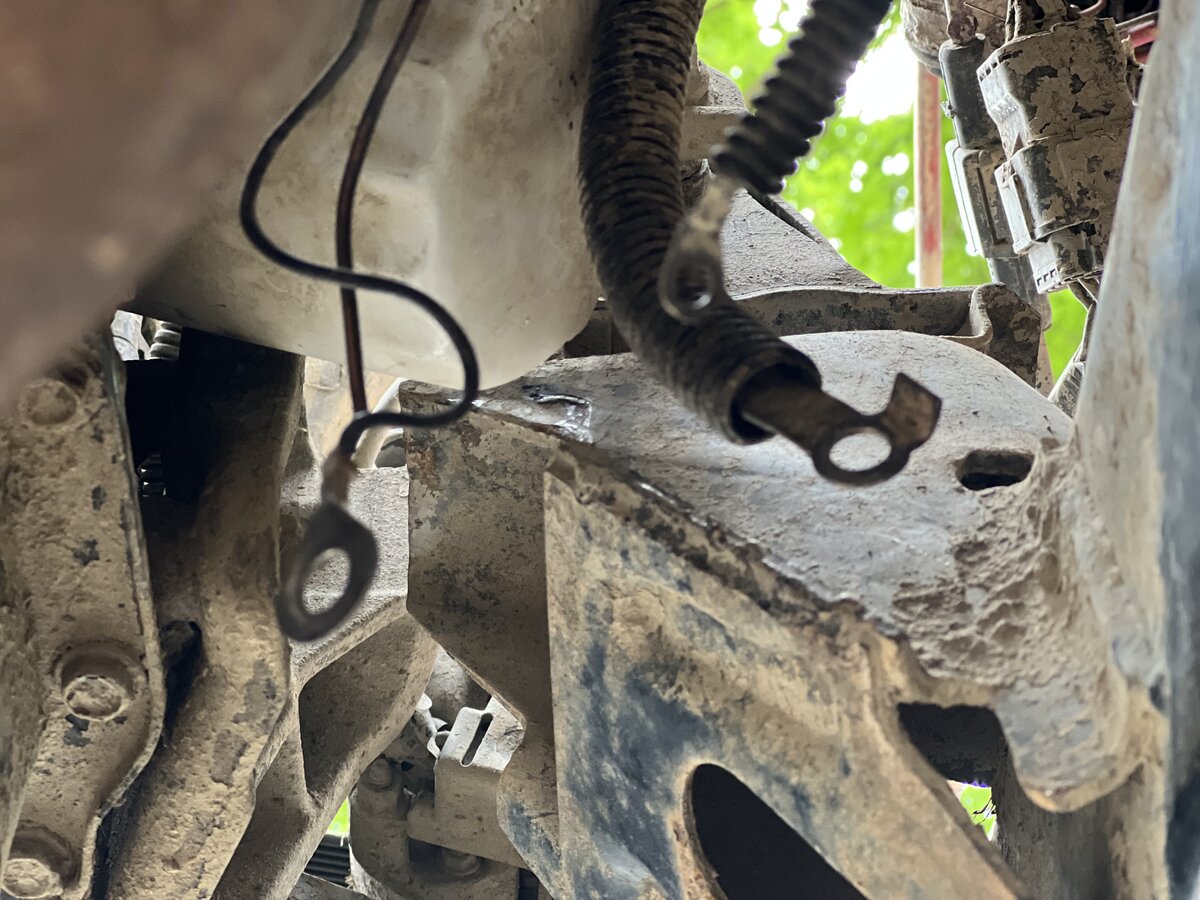

I’ve recently replaced my clutch and when I went to start it up there was nothing. No crank no nothing. I checked the starter (which is basically brand new) and a mysterious wire appeared that I haven’t seen before. My thought is that this wire is my issue for no start. It’s two wires that come together at one eyelet, one black wire one black wire with a red stripe. I’m unsure of what it connects to. I have removed the starter to have more room to look for where this wire is supposed to go. I’m really hoping that this wire being connected will solve my no start issue. All help is appreciated thank you.







ytradio

YJ Enthusiast
Joined
Aug 24, 2021
Messages
149
Location
WV
Try trading your crocks in for work boots and see if that helps. No, sorry just kidding and couldn’t resist.

  • Haha
Reactions: Flyer58

Flyer58

YJ Enthusiast
Joined
Apr 12, 2020
Messages
640
Location
Magnolia, Texas

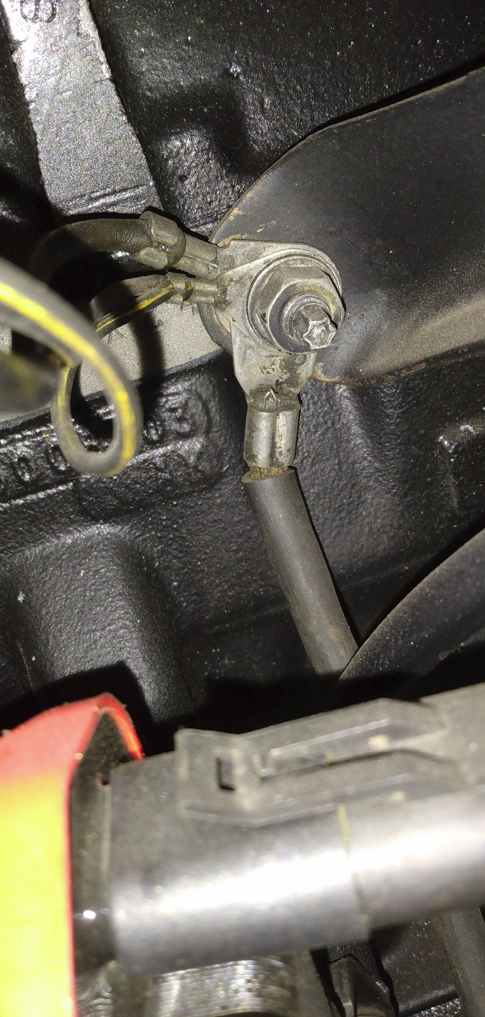

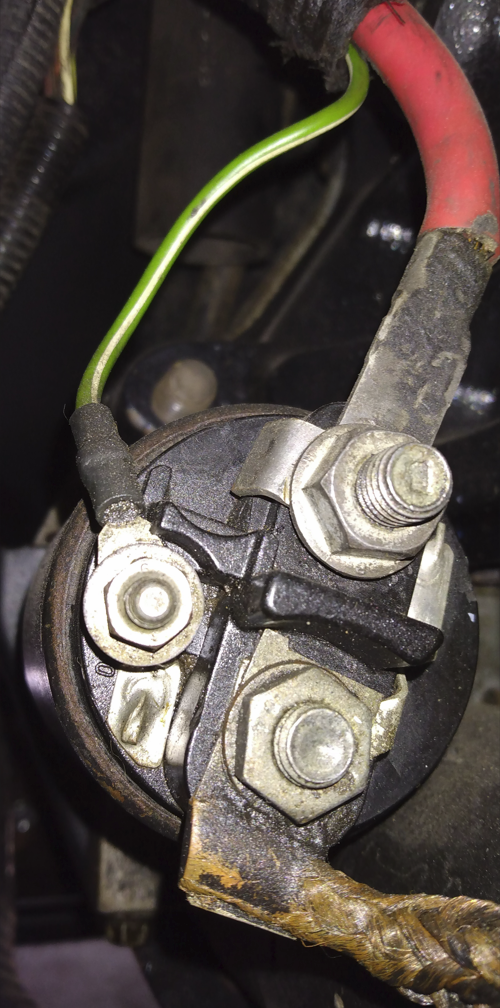

This is from my '92 YJ 2.4 The starter wires and a grounding bolt on the block above the starter. Hope this helps.

Those are the only wires I see with that type connector.
